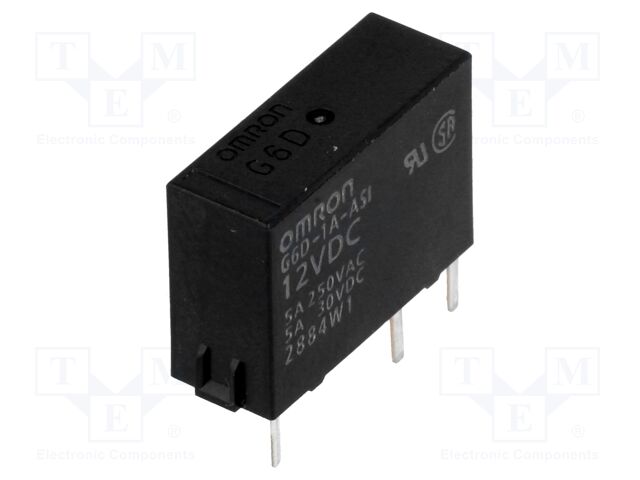

OMRON OCB G6D-1A-ASI 12VDC | Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; Icontacts max: 5A

OMRON OCB . G6D-1A-ASI 12VDC

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerOMRON OCB
CategoryL1Relays and Contactors
CategoryL2Relays
CategoryL3Electromagnetic Relays
CategoryL4Miniature Electromagnetic Relays
Extra Product NameOMRON OCB G6D-1A-ASI 12VDC | Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; Icontacts max: 5A
atoms, moq, multiple, tierMinQty11
jsonUrlData2bee6b8f44fa1e678f13ede25e1ed5e9.
jsonUrlData26d7d1b8d08551acc81e4
keywordsOMRON OCB, G6D-1A-ASI 12VDC, G6D-1A-ASI-12DC, Relays and Contactors, Relays, Electromagnetic Relays, Miniature Electromagnetic Relays
MPNG6D-1A-ASI 12VDC
qtyInStock833
SKUG6D-1A-ASI-12DC
snippetOMRON OCB G6D-1A-ASI 12VDC | Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; Icontacts max: 5
tierMinQty25
tierMinQty325
tierMinQty4100
tierMinQty5500
tierPrice12.8
tierPrice22.54
tierPrice31.97
tierPrice41.84
tierPrice51.72
Type of relayelectromagnetic
Contacts configurationSPST-NO
Rated coil voltage12V DC
Contact current max5A
AC contacts rating @R5A / 250V AC
DC contacts rating @R5A / 30V DC
Switched voltagemax. 30V DC,
Relay variantminiature
MountingPCB,
Coil resistance720?
Operate time10ms
Body dimensions17.5x6.5x12.5mm
Release time5ms
Coil power consumption200mW
Operating temperature-25...70?C
Relay seriesG6D
Contact resistance100m?
Terminal pitch5.08mm
Coil current16.7mA

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMEG6D-1A-ASI-12DC183311 @ $2.80, 5 @ $2.54, 25 @ $1.97, 100 @ $1.84, 500 @ $1.72
TMEG6D-1A-12DC11
