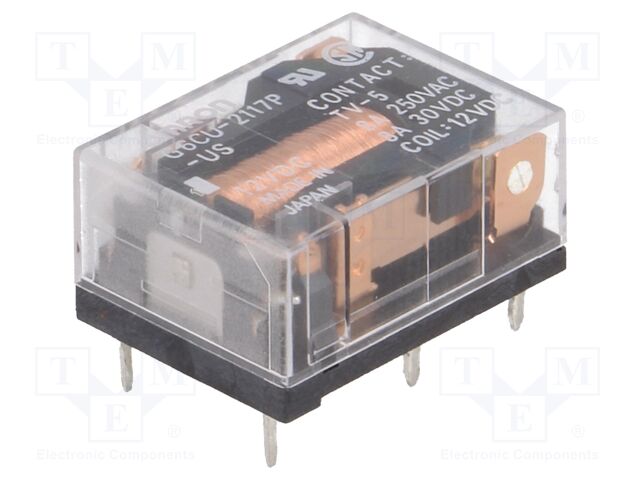

OMRON OCB G6CU-2117P-US 12VDC | Relay: electromagnetic; SPST-NO + SPST-NC; Ucoil: 12VDC; 8A/30VDC

OMRON OCB . G6CU-2117P-US 12VDC

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerOMRON OCB
CategoryL1Relays and Contactors
CategoryL2Relays
CategoryL3Electromagnetic Relays
CategoryL4Miniature Electromagnetic Relays
Extra Product NameOMRON OCB G6CU-2117P-US 12VDC | Relay: electromagnetic; SPST-NO + SPST-NC; Ucoil: 12VDC; 8A/30VDC
atoms, moq, multiple1
jsonUrlData1ef4c2c545b0ff2bd2958addc3596a25.
jsonUrlData2cc7294ea327feba40eb9
keywordsOMRON OCB, G6CU-2117P-US 12VDC, G6CU-2117P-US-12DC, Relays and Contactors, Relays, Electromagnetic Relays, Miniature Electromagnetic Relays
MPNG6CU-2117P-US 12VDC
qtyInStock0
SKUG6CU-2117P-US-12DC
snippetOMRON OCB G6CU-2117P-US 12VDC | Relay: electromagnetic; SPST-NO + SPST-NC; Ucoil: 12VDC; 8A/30VD
Type of relayelectromagnetic
Contacts configurationSPST-NO + SPST-NC
Rated coil voltage12V DC
Contact current max8A
AC contacts rating @R8A / 250V AC
DC contacts rating @R8A / 30V DC
Switched voltagemax. 125V DC,
Relay variantbistable,
MountingPCB,
Coil resistance720?
Operate time, Release time10ms
Body dimensions20x15x10mm
Operating temperature-25...70?C
Relay seriesG6C
Contact resistance30m?
Terminal pitch7.62mm
Coil current16.7mA
Enclosure descriptionstandard seal
Designsingle coil
