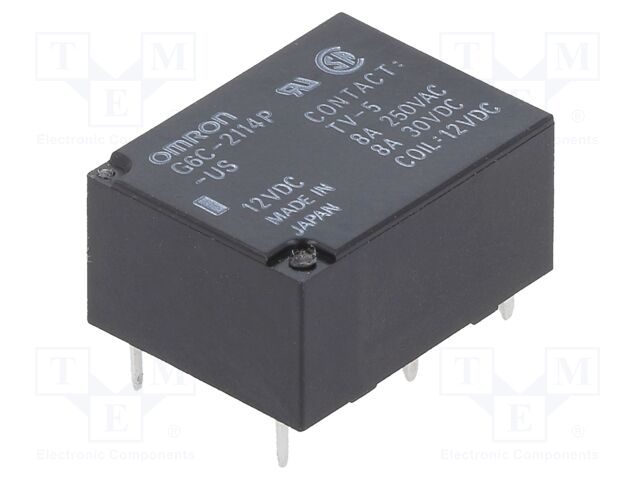

OMRON OCB G6C-2114P-US DC12 | Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; Icontacts max: 10A

OMRON OCB . G6C-2114P-US DC12

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerOMRON OCB
CategoryL1Relays and Contactors
CategoryL2Relays
CategoryL3Electromagnetic Relays
CategoryL4Miniature Electromagnetic Relays
Extra Product NameOMRON OCB G6C-2114P-US DC12 | Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; Icontacts max: 10A
atoms, moq, multiple, tierMinQty11
jsonUrlDataed77e8b22d381f9969dbe2a6d3716414.
jsonUrlData22433159638c8508b479b
keywordsOMRON OCB, G6C-2114P-US DC12, G6C-2114P-US-12DC, Relays and Contactors, Relays, Electromagnetic Relays, Miniature Electromagnetic Relays
MPNG6C-2114P-US DC12
qtyInStock0
SKUG6C-2114P-US-12DC
snippetOMRON OCB G6C-2114P-US DC12 | Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; Icontacts max: 10
tierMinQty25
tierMinQty325
tierMinQty4100
tierPrice15.96
tierPrice25.22
tierPrice34.62
tierPrice44.12
Type of relayelectromagnetic
Contacts configurationSPST-NO
Rated coil voltage12V DC
Contact current max10A
AC contacts rating @R10A / 250V AC
DC contacts rating @R10A / 30V DC
Switched voltagemax. 125V DC,
Relay variantminiature
MountingPCB,
Coil resistance720?
Operate time, Release time10ms
Body dimensions20x15x10mm
Operating temperature-25...70?C
Relay seriesG6C
Contact resistance30m?
Terminal pitch7.62mm
Coil current16.7mA
Enclosure descriptionstandard seal

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMEG6C-2114P-US-12DC111 @ $5.96, 5 @ $5.22, 25 @ $4.62, 100 @ $4.12
