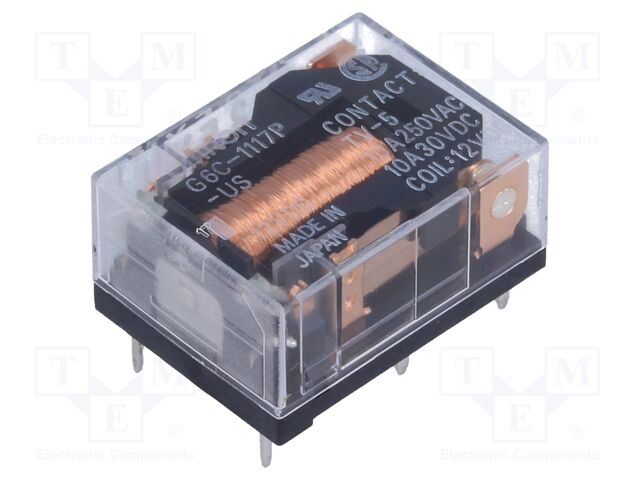

OMRON OCB G6C-1117P-US 12VDC | Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; Icontacts max: 10A

OMRON OCB . G6C-1117P-US 12VDC

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerOMRON OCB
CategoryL1Relays and Contactors
CategoryL2Relays
CategoryL3Electromagnetic Relays
CategoryL4Miniature Electromagnetic Relays
Extra Product NameOMRON OCB G6C-1117P-US 12VDC | Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; Icontacts max: 10A
atoms, moq, multiple, tierMinQty11
jsonUrlData8966c144b092d8575c8cd09340230ece.
jsonUrlData28f7075ee6bfb1d444e63
keywordsOMRON OCB, G6C-1117P-US 12VDC, G6C-1117P-US-12DC
MPNG6C-1117P-US 12VDC
qtyInStock52
SKUG6C-1117P-US-12DC
snippetOMRON OCB G6C-1117P-US 12VDC | Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; Icontacts max: 10
tierMinQty25
tierMinQty325
tierMinQty4100
tierMinQty5500
tierPrice15.39
tierPrice24.93
tierPrice33.85
tierPrice43.6
tierPrice53.32
Type of relayelectromagnetic
Contacts configurationSPST-NO
Rated coil voltage12V DC
Contact current max10A
AC contacts rating @R10A / 250V AC
DC contacts rating @R10A / 30V DC
Switched voltagemax. 125V DC,
Relay variantminiature
MountingPCB,
Coil resistance720?
Operate time, Release time10ms
Body dimensions20x15x10mm
Operating temperature-25...70?C
Relay seriesG6C
Contact resistance30m?
Terminal pitch7.62mm
Coil current16.7mA
Enclosure descriptionstandard seal

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMEG6C-1117P-US-12DC15211 @ $5.39, 5 @ $4.93, 25 @ $3.85, 100 @ $3.60, 500 @ $3.32
