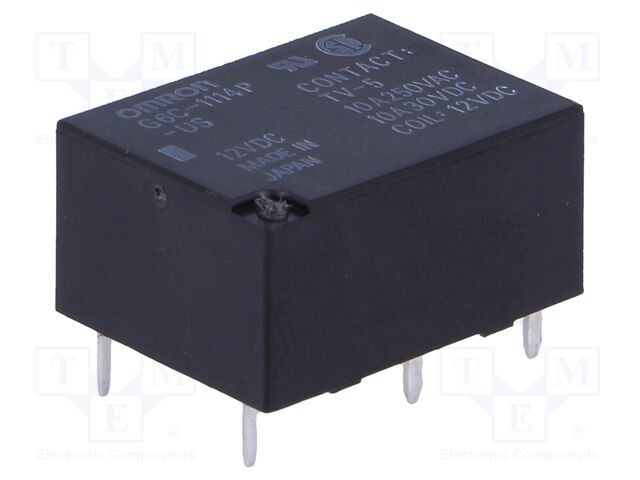

OMRON OCB G6C-1114P-US 12VDC | Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; Icontacts max: 10A

OMRON OCB . G6C-1114P-US 12VDC

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerOMRON OCB
CategoryL1Relays and Contactors
CategoryL2Relays
CategoryL3Electromagnetic Relays
CategoryL4Miniature Electromagnetic Relays
Extra Product NameOMRON OCB G6C-1114P-US 12VDC | Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; Icontacts max: 10A
atoms, moq, multiple, tierMinQty11
jsonUrlData395c092709c773e87356fb87af6cb091.
jsonUrlData2cc87a199f6080d114781
keywordsOMRON OCB, G6C-1114P-US 12VDC, G6C-1114P-US-12DC
MPNG6C-1114P-US 12VDC
qtyInStock54
SKUG6C-1114P-US-12DC
snippetOMRON OCB G6C-1114P-US 12VDC | Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; Icontacts max: 10
tierMinQty25
tierMinQty325
tierMinQty4100
tierMinQty5500
tierPrice16.03
tierPrice25.48
tierPrice34.25
tierPrice43.97
tierPrice53.73
Type of relayelectromagnetic
Contacts configurationSPST-NO
Rated coil voltage12V DC
Contact current max10A
AC contacts rating @R10A / 250V AC
DC contacts rating @R10A / 30V DC
Switched voltagemax. 125V DC,
Relay variantminiature
MountingPCB,
Coil resistance720?
Operate time, Release time10ms
Body dimensions20x15x10mm
Operating temperature-25...70?C
Relay seriesG6C
Contact resistance30m?
Terminal pitch7.62mm
Coil current16.7mA
Enclosure descriptionhermetic seal

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMEG6C-1114P-US-12DC15411 @ $6.03, 5 @ $5.48, 25 @ $4.25, 100 @ $3.97, 500 @ $3.73
TMEG6C1114PUS12DC/ZS11
