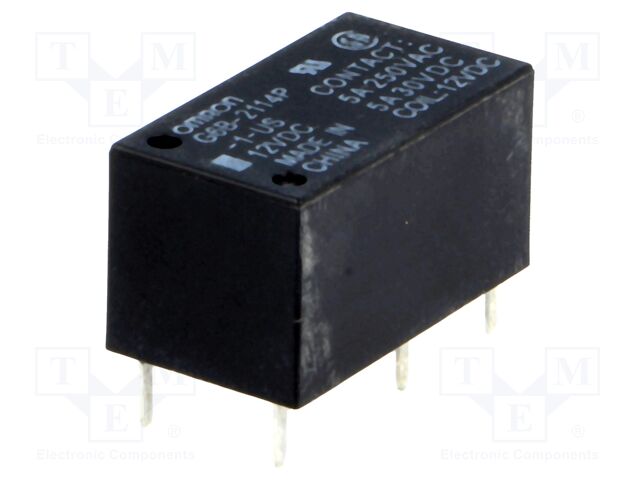

OMRON OCB G6B-2114P-1-US 12VDC | Relay: electromagnetic; SPST-NO + SPST-NC; Ucoil: 12VDC; 5A/30VDC

OMRON OCB . G6B-2114P-1-US 12VDC

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerOMRON OCB
CategoryL1Relays and Contactors
CategoryL2Relays
CategoryL3Electromagnetic Relays
CategoryL4Miniature Electromagnetic Relays
Extra Product NameOMRON OCB G6B-2114P-1-US 12VDC | Relay: electromagnetic; SPST-NO + SPST-NC; Ucoil: 12VDC; 5A/30VDC
atoms, moq, multiple, tierMinQty11
jsonUrlData058b1a25d0ab953b085e66368fccab21.
jsonUrlData270903af1c77ac9a70ba2
keywordsOMRON OCB, G6B-2114P-1-US 12VDC, G6B-2114P1-US-12DC, Relays and Contactors, Relays, Electromagnetic Relays, Miniature Electromagnetic Relays
MPNG6B-2114P-1-US 12VDC
qtyInStock95
SKUG6B-2114P1-US-12DC
snippetOMRON OCB G6B-2114P-1-US 12VDC | Relay: electromagnetic; SPST-NO + SPST-NC; Ucoil: 12VDC; 5A/30VD
tierMinQty25
tierMinQty325
tierMinQty4100
tierMinQty5500
tierPrice16.44
tierPrice25.66
tierPrice34.72
tierPrice44.44
tierPrice54.13
Type of relayelectromagnetic
Contacts configurationSPST-NO + SPST-NC
Rated coil voltage12V DC
Contact current max5A
AC contacts rating @R5A / 250V AC
DC contacts rating @R5A / 30V DC
Switched voltagemax. 125V DC,
Relay variantminiature
MountingPCB,
Coil resistance480?
Operate time, Release time10ms
Body dimensions20x10x10mm
Operating temperature-25...70?C
Relay seriesG6B
Contact resistance30m?
Terminal pitch7.62mm
Coil current25mA
Relay featuresreversed coil polarity

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMEG6B-2114P1-US-12DC19511 @ $6.44, 5 @ $5.66, 25 @ $4.72, 100 @ $4.44, 500 @ $4.13
