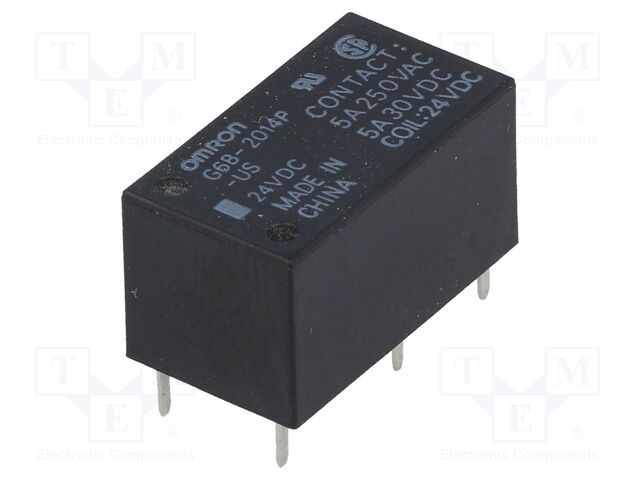

OMRON OCB G6B-2014P-US 24VDC | Relay: electromagnetic; DPST-NC; Ucoil: 24VDC; Icontacts max: 5A

OMRON OCB . G6B-2014P-US 24VDC

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerOMRON OCB
CategoryL1Relays and Contactors
CategoryL2Relays
CategoryL3Electromagnetic Relays
CategoryL4Miniature Electromagnetic Relays
Extra Product NameOMRON OCB G6B-2014P-US 24VDC | Relay: electromagnetic; DPST-NC; Ucoil: 24VDC; Icontacts max: 5A
atoms, moq, multiple, tierMinQty11
jsonUrlData29e6d804a2d854bce1b3094e3688879e.
jsonUrlData265f063aceb8145642ff5
keywordsOMRON OCB, G6B-2014P-US 24VDC, G6B-2014P-US-24DC
MPNG6B-2014P-US 24VDC
qtyInStock73
SKUG6B-2014P-US-24DC
snippetOMRON OCB G6B-2014P-US 24VDC | Relay: electromagnetic; DPST-NC; Ucoil: 24VDC; Icontacts max: 5
tierMinQty25
tierMinQty325
tierMinQty4100
tierMinQty5500
tierPrice18.19
tierPrice27.45
tierPrice35.4
tierPrice45.1
tierPrice54.77
Type of relayelectromagnetic
Contacts configurationDPST-NC
Rated coil voltage24V DC
Contact current max5A
AC contacts rating @R5A / 250V AC
DC contacts rating @R5A / 30V DC
Switched voltagemax. 125V DC,
Relay variantminiature
MountingPCB,
Coil resistance1.92k?
Operate time, Release time10ms
Body dimensions20x10x10mm
Operating temperature-25...70?C
Relay seriesG6B
Contact resistance30m?
Terminal pitch7.62mm
Coil current12.5mA

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMEG6B-2014P-US-24DC17311 @ $8.19, 5 @ $7.45, 25 @ $5.40, 100 @ $5.10, 500 @ $4.77
