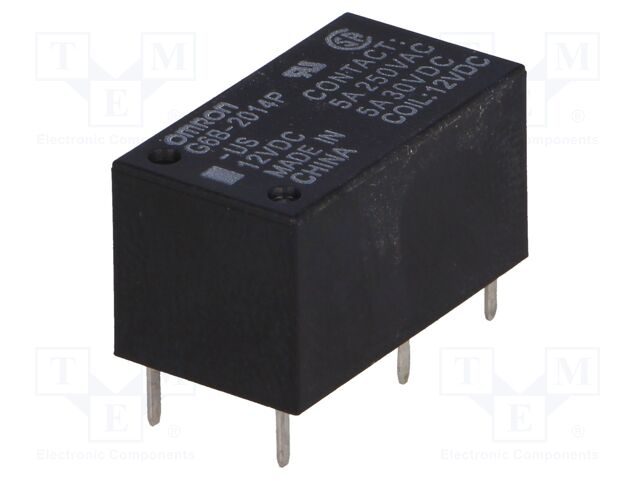

OMRON OCB G6B-2014P-US 12VDC | Relay: electromagnetic; DPST-NC; Ucoil: 12VDC; Icontacts max: 5A

OMRON OCB . G6B-2014P-US 12VDC

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerOMRON OCB
CategoryL1Relays and Contactors
CategoryL2Relays
CategoryL3Electromagnetic Relays
CategoryL4Miniature Electromagnetic Relays
Extra Product NameOMRON OCB G6B-2014P-US 12VDC | Relay: electromagnetic; DPST-NC; Ucoil: 12VDC; Icontacts max: 5A
atoms, moq, multiple, tierMinQty11
jsonUrlDatae3755f9943b718df293cfedbfb7fa8d4.
jsonUrlData2413f9af6b62665b8092f
keywordsOMRON OCB, G6B-2014P-US 12VDC, G6B-2014P-US-12DC
MPNG6B-2014P-US 12VDC
qtyInStock31
SKUG6B-2014P-US-12DC
snippetOMRON OCB G6B-2014P-US 12VDC | Relay: electromagnetic; DPST-NC; Ucoil: 12VDC; Icontacts max: 5
tierMinQty25
tierMinQty325
tierMinQty4100
tierMinQty5500
tierPrice18.19
tierPrice27.44
tierPrice35.88
tierPrice45.35
tierPrice55.06
Type of relayelectromagnetic
Contacts configurationDPST-NC
Rated coil voltage12V DC
Contact current max5A
AC contacts rating @R5A / 250V AC
DC contacts rating @R5A / 30V DC
Switched voltagemax. 125V DC,
Relay variantminiature
MountingPCB,
Coil resistance480?
Operate time, Release time10ms
Body dimensions20x10x10mm
Operating temperature-25...70?C
Relay seriesG6B
Contact resistance30m?
Terminal pitch7.62mm
Coil current25mA

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMEG6B-2014P-US-12DC13111 @ $8.19, 5 @ $7.44, 25 @ $5.88, 100 @ $5.35, 500 @ $5.06
