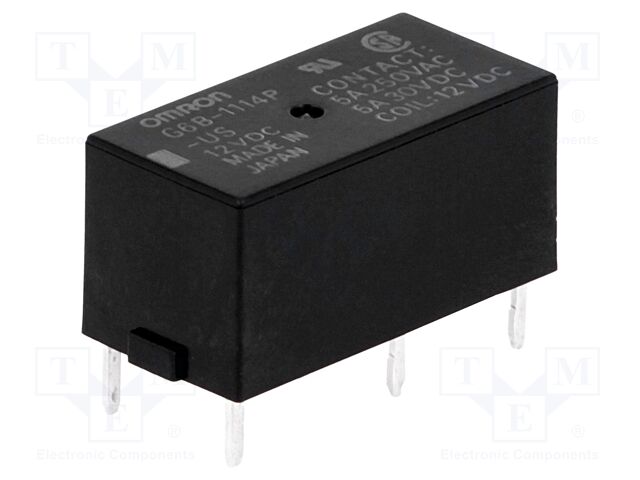

OMRON OCB G6B-1114P-US 12VDC | Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; Icontacts max: 5A

OMRON OCB . G6B-1114P-US 12VDC

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerOMRON OCB
CategoryL1Relays and Contactors
CategoryL2Relays
CategoryL3Electromagnetic Relays
CategoryL4Miniature Electromagnetic Relays
Extra Product NameOMRON OCB G6B-1114P-US 12VDC | Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; Icontacts max: 5A
atoms, moq, multiple, tierMinQty11
jsonUrlData088b4501c57b167a56368b0aadd5a5bb.
jsonUrlData208d7145bc2dd5325d9da
keywordsOMRON OCB, G6B-1114P-US 12VDC, G6B-1114P-US-12DC
MPNG6B-1114P-US 12VDC
qtyInStock404
SKUG6B-1114P-US-12DC
snippetOMRON OCB G6B-1114P-US 12VDC | Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; Icontacts max: 5
tierMinQty25
tierMinQty325
tierMinQty4100
tierMinQty5500
tierPrice13.72
tierPrice23.38
tierPrice32.62
tierPrice42.45
tierPrice52.29
Type of relayelectromagnetic
Contacts configurationSPST-NO
Rated coil voltage12V DC
Contact current max5A
AC contacts rating @R5A / 250V AC
DC contacts rating @R5A / 30V DC
Switched voltagemax. 125V DC,
Relay variantminiature
MountingPCB,
Coil resistance720?
Operate time, Release time10ms
Body dimensions20x10x10mm
Operating temperature-25...70?C
Relay seriesG6B
Contact resistance30m?
Terminal pitch7.62mm
Coil current16.7mA

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMEG6B-1114P-US-12DC140411 @ $3.72, 5 @ $3.38, 25 @ $2.62, 100 @ $2.45, 500 @ $2.29
