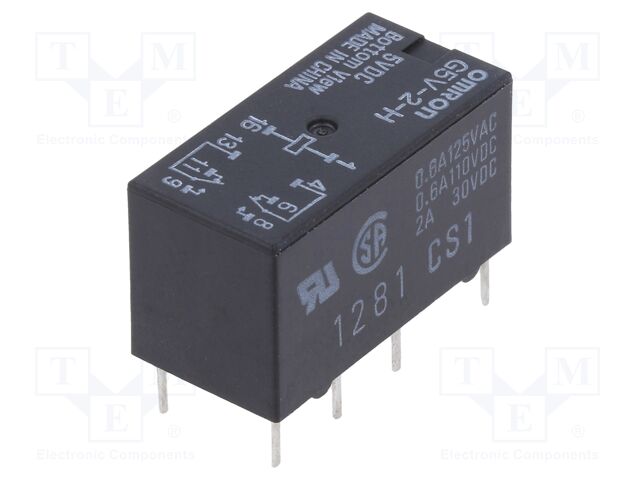

OMRON OCB G5V-2-H 5DC | Relay: electromagnetic; DPDT; Ucoil: 5VDC; Icontacts max: 2A; PCB

OMRON OCB . G5V-2-H 5DC

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerOMRON OCB
CategoryL1Relays and Contactors
CategoryL2Relays
CategoryL3Electromagnetic Relays
CategoryL4Miniature Electromagnetic Relays
Extra Product NameOMRON OCB G5V-2-H 5DC | Relay: electromagnetic; DPDT; Ucoil: 5VDC; Icontacts max: 2A; PCB
atoms, moq, multiple, tierMinQty11
jsonUrlData3aee86ddf112730e8839a91059a41e80.
jsonUrlData22b93d338ff1958e83924
keywordsOMRON OCB, G5V-2-H 5DC, G5V-2-H-5DC, Relays and Contactors, Relays, Electromagnetic Relays, Miniature Electromagnetic Relays
MPNG5V-2-H 5DC
qtyInStock30
SKUG5V-2-H-5DC
snippetOMRON OCB G5V-2-H 5DC | Relay: electromagnetic; DPDT; Ucoil: 5VDC; Icontacts max: 2A; PC
tierMinQty25
tierMinQty325
tierMinQty4100
tierPrice13.83
tierPrice23.35
tierPrice32.96
tierPrice42.64
Type of relayelectromagnetic
Contacts configurationDPDT
Rated coil voltage5V DC
Contact current max2A
AC contacts rating @R0.5A / 125V AC
DC contacts rating @R2A / 30V DC
Switched voltagemax. 125V AC,
Relay variantminiature
MountingPCB
Coil resistance167?
Operate time7ms
Body dimensions20.5x10.1x11.5mm
Release time3ms
Coil power consumption150mW
Operating temperature-40...70?C
Relay seriesG5V-2
Contact resistance50?
Terminal pitch5mm
Coil current30mA
Contact platinggold-plated

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMEG5V-2-H-5DC13011 @ $3.83, 5 @ $3.35, 25 @ $2.96, 100 @ $2.64
