OMRON OCB G5V-2-5VDC | Relay: electromagnetic; DPDT; Ucoil: 5VDC; Icontacts max: 2A; PCB

OMRON OCB . G5V-2-5VDC

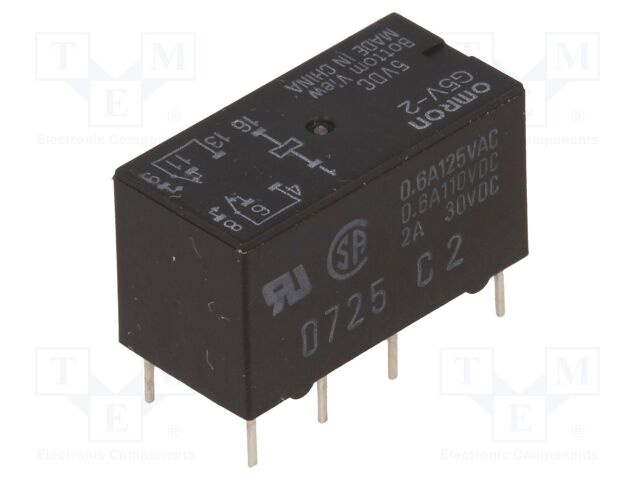

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerOMRON OCB
CategoryL1Relays and Contactors
CategoryL2Relays
CategoryL3Electromagnetic Relays
CategoryL4Miniature Electromagnetic Relays
Extra Product NameOMRON OCB G5V-2-5VDC | Relay: electromagnetic; DPDT; Ucoil: 5VDC; Icontacts max: 2A; PCB
atoms, moq, multiple, tierMinQty11
jsonUrlData2d0314b2f5f941f66f560e8ed42187a3.
jsonUrlData2ece0ce3500b995fc16a6
keywordsOMRON OCB, G5V-2-5VDC, G5V2-5
MPNG5V-2-5VDC
qtyInStock0
SKUG5V2-5
snippetOMRON OCB G5V-2-5VDC | Relay: electromagnetic; DPDT; Ucoil: 5VDC; Icontacts max: 2A; PC
tierMinQty25
tierMinQty325
tierMinQty4100
tierMinQty5500
tierPrice14.1
tierPrice23.7
tierPrice33.27
tierPrice42.9
tierPrice52.29
Type of relayelectromagnetic
Contacts configurationDPDT
Rated coil voltage5V DC
Contact current max2A
AC contacts rating @R0.5A / 125V AC
DC contacts rating @R2A / 30V DC
Switched voltagemax. 125V AC,
Relay variantminiature
MountingPCB
Coil resistance50?
Operate time7ms
Body dimensions20.5x10.1x11.5mm
Release time3ms
Coil power consumption0.5W
Operating temperature-25...70?C
Relay seriesG5V-2
Contact resistance50m?
Terminal pitch5mm
Coil current100mA
Contact platinggold-plated

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMEG5V2-5111 @ $4.10, 5 @ $3.70, 25 @ $3.27, 100 @ $2.90, 500 @ $2.29
