OMRON OCB G5V-2 4.5VDC | Relay: electromagnetic; DPDT; Ucoil: 4.5VDC; Icontacts max: 2A

OMRON OCB . G5V-2 4.5VDC

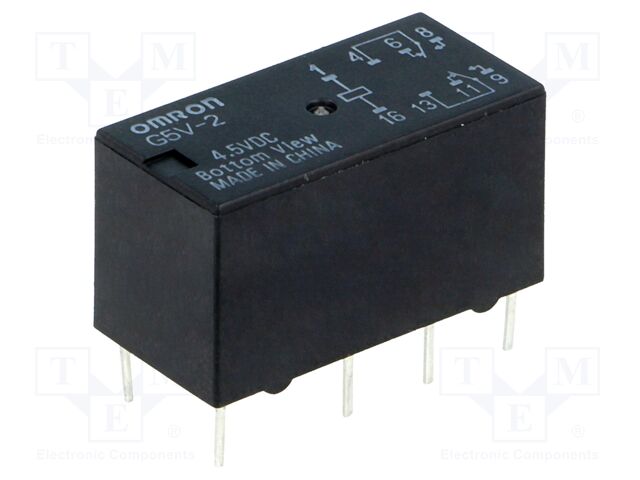

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerOMRON OCB
CategoryL1Relays and Contactors
CategoryL2Relays
CategoryL3Electromagnetic Relays
CategoryL4Miniature Electromagnetic Relays
Extra Product NameOMRON OCB G5V-2 4.5VDC | Relay: electromagnetic; DPDT; Ucoil: 4.5VDC; Icontacts max: 2A
atoms, moq, multiple, tierMinQty11
jsonUrlDataa95fe0681c406a2614a0223a6d9161aa.
jsonUrlData2580a8b748f853774135a
keywordsOMRON OCB, G5V-2 4.5VDC, G5V2-4.5, Relays and Contactors, Relays, Electromagnetic Relays, Miniature Electromagnetic Relays
MPNG5V-2 4.5VDC
qtyInStock213
SKUG5V2-4.5
snippetOMRON OCB G5V-2 4.5VDC | Relay: electromagnetic; DPDT; Ucoil: 4.5VDC; Icontacts max: 2
tierMinQty25
tierMinQty325
tierMinQty4100
tierPrice12.53
tierPrice22.29
tierPrice31.8
tierPrice41.79
Type of relayelectromagnetic
Contacts configurationDPDT
Rated coil voltage4.5V DC
Contact current max2A
AC contacts rating @R0.5A / 125V AC
DC contacts rating @R2A / 30V DC
Switched voltagemax. 125V AC,
Relay variantminiature
MountingPCB
Coil resistance40?
Operate time7ms
Body dimensions20.5x10.1x11.5mm
Release time3ms
Coil power consumption0.5W
Operating temperature-25...70?C
Relay seriesG5V-2
Contact resistance50m?
Terminal pitch5mm
Coil current111mA
Contact platinggold-plated

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMEG5V2-4.5121311 @ $2.53, 5 @ $2.29, 25 @ $1.80, 100 @ $1.79
