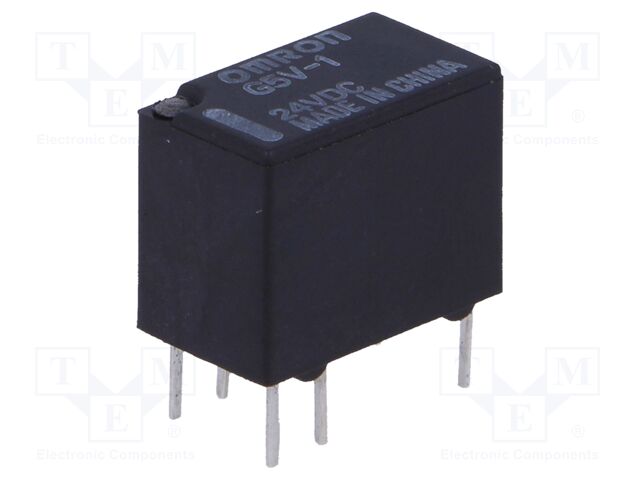

OMRON OCB G5V-1 24VDC | Relay: electromagnetic; SPDT; Ucoil: 24VDC; Icontacts max: 1A; PCB

OMRON OCB . G5V-1 24VDC

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerOMRON OCB
CategoryL1Relays and Contactors
CategoryL2Relays
CategoryL3Electromagnetic Relays
CategoryL4Miniature Electromagnetic Relays
Extra Product NameOMRON OCB G5V-1 24VDC | Relay: electromagnetic; SPDT; Ucoil: 24VDC; Icontacts max: 1A; PCB
atoms, moq, multiple, tierMinQty11
jsonUrlDatabbc2f0bc6fffd8d2d91495aff9b0611c.
jsonUrlData2bd579e4f434e628cf39a
keywordsOMRON OCB, G5V-1 24VDC, G5V1-24
MPNG5V-1 24VDC
qtyInStock1248
SKUG5V1-24
snippetOMRON OCB G5V-1 24VDC | Relay: electromagnetic; SPDT; Ucoil: 24VDC; Icontacts max: 1A; PC
tierMinQty25
tierMinQty325
tierMinQty4100
tierMinQty5500
tierPrice12.07
tierPrice21.88
tierPrice31.74
tierPrice41.55
tierPrice51.41
Type of relayelectromagnetic
Contacts configurationSPDT
Rated coil voltage24V DC
Contact current max1A
AC contacts rating @R0.5A / 125V AC
DC contacts rating @R1A / 24V DC
Switched voltagemax. 60V DC,
Relay variantsubminiature
MountingPCB
Coil resistance3.84k?
Body dimensions12.5x7.5x10mm
Coil power consumption150mW
Operating temperature-30...70?C
Relay seriesG5V-1
Contact resistance100m?
Terminal pitch2.54mm
Coil current6.25mA

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMEG5V1-241124811 @ $2.07, 5 @ $1.88, 25 @ $1.74, 100 @ $1.55, 500 @ $1.41
TMEG5V1-24-O11
