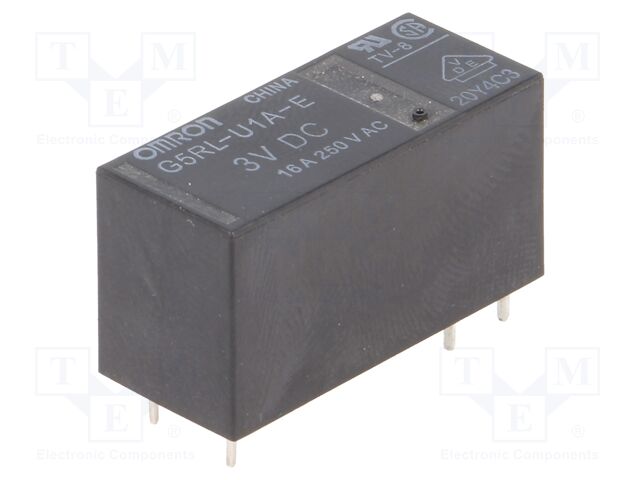

OMRON OCB G5RL-U1A-E-3DC | Relay: electromagnetic; SPST; Ucoil: 3VDC; Icontacts max: 16A; PCB

OMRON OCB . G5RL-U1A-E-3DC

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerOMRON OCB
CategoryL1Relays and Contactors
CategoryL2Relays
CategoryL3Electromagnetic Relays
CategoryL4Miniature Electromagnetic Relays
Extra Product NameOMRON OCB G5RL-U1A-E-3DC | Relay: electromagnetic; SPST; Ucoil: 3VDC; Icontacts max: 16A; PCB
atoms, moq, multiple, tierMinQty11
jsonUrlData990322df5ea13d162331c2e3245c0e8a.
jsonUrlData2d258db1831eb591485c4
keywordsOMRON OCB, G5RL-U1A-E-3DC
MPN, SKUG5RL-U1A-E-3DC
qtyInStock621
snippetOMRON OCB G5RL-U1A-E-3DC | Relay: electromagnetic; SPST; Ucoil: 3VDC; Icontacts max: 16A; PC
tierMinQty25
tierMinQty325
tierMinQty4100
tierMinQty5500
tierPrice16.33
tierPrice25.75
tierPrice34.47
tierPrice44.18
tierPrice53.89
Type of relayelectromagnetic
Contacts configurationSPST
Rated coil voltage3V DC
Contact current max16A
AC contacts rating @R16A / 250V AC
DC contacts rating @R16A / 24V DC
Switched voltagemax. 24V DC,
Relay variantbistable,
MountingPCB
Coil resistance15?
Operate time, Release time15ms
Body dimensions29x12.7x15.7mm
Coil power consumption0.6W
Operating temperature-40...85?C
Relay seriesG5RL-U
Contact resistance100m?
Terminal pitch5mm
Coil current200mA
Leadsfor PCB
Designsingle coil

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMEG5RL-U1A-E-3DC162111 @ $6.33, 5 @ $5.75, 25 @ $4.47, 100 @ $4.18, 500 @ $3.89
