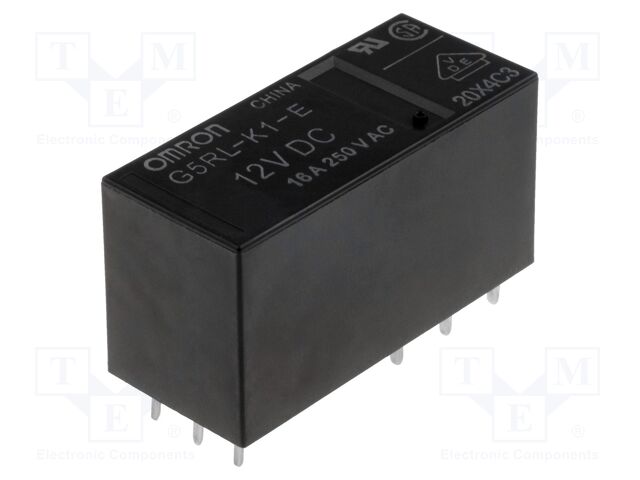

OMRON OCB G5RL-K1-E-12DC | Relay: electromagnetic; SPDT; Ucoil: 12VDC; Icontacts max: 16A

OMRON OCB . G5RL-K1-E-12DC

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerOMRON OCB
CategoryL1Relays and Contactors
CategoryL2Relays
CategoryL3Electromagnetic Relays
CategoryL4Miniature Electromagnetic Relays
Extra Product NameOMRON OCB G5RL-K1-E-12DC | Relay: electromagnetic; SPDT; Ucoil: 12VDC; Icontacts max: 16A
atoms, moq, multiple, tierMinQty11
jsonUrlDataa464d1c24b8b2bbca66618f2c313f83a.
jsonUrlData2d88c98e231de76d79e4c
keywordsOMRON OCB, G5RL-K1-E-12DC
MPN, SKUG5RL-K1-E-12DC
qtyInStock41
snippetOMRON OCB G5RL-K1-E-12DC | Relay: electromagnetic; SPDT; Ucoil: 12VDC; Icontacts max: 16
tierMinQty25
tierMinQty325
tierMinQty4100
tierMinQty5500
tierPrice18.19
tierPrice27.44
tierPrice35.77
tierPrice45.39
tierPrice55.02
Type of relayelectromagnetic
Contacts configurationSPDT
Rated coil voltage12V DC
Contact current max16A
AC contacts rating @R16A / 250V AC
DC contacts rating @R16A / 24V DC
Switched voltagemax. 24V DC,
Relay variantbistable,
MountingPCB
Coil resistance192?
Operate time, Release time15ms
Body dimensions29x12.7x15.7mm
Coil power consumption750mW
Operating temperature-40...85?C
Relay seriesG5RL-K
Contact resistance100m?
Terminal pitch5mm
Coil current62.5mA
Leadsfor PCB
Designtwo coils

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMEG5RL-K1-E-12DC14111 @ $8.19, 5 @ $7.44, 25 @ $5.77, 100 @ $5.39, 500 @ $5.02
