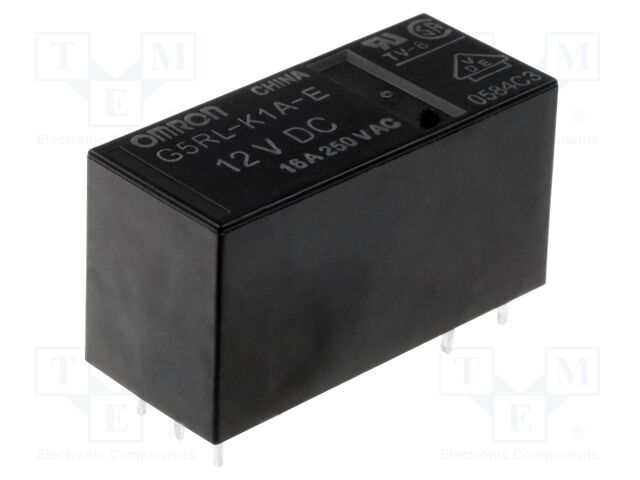

OMRON OCB G5RL-K1A-E-12DC | Relay: electromagnetic; SPST; Ucoil: 12VDC; Icontacts max: 16A

OMRON OCB . G5RL-K1A-E-12DC

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerOMRON OCB
CategoryL1Relays and Contactors
CategoryL2Relays
CategoryL3Electromagnetic Relays
CategoryL4Miniature Electromagnetic Relays
Extra Product NameOMRON OCB G5RL-K1A-E-12DC | Relay: electromagnetic; SPST; Ucoil: 12VDC; Icontacts max: 16A
atoms, moq, multiple, tierMinQty11
jsonUrlData197537fdf3894201be14b3da4030ce3a.
jsonUrlData259f6706b0ec138a6ca24
keywordsOMRON OCB, G5RL-K1A-E-12DC
MPN, SKUG5RL-K1A-E-12DC
qtyInStock95
snippetOMRON OCB G5RL-K1A-E-12DC | Relay: electromagnetic; SPST; Ucoil: 12VDC; Icontacts max: 16
tierMinQty25
tierMinQty325
tierMinQty4100
tierMinQty5500
tierPrice16.86
tierPrice26.23
tierPrice34.86
tierPrice44.52
tierPrice54.21
Type of relayelectromagnetic
Contacts configurationSPST
Rated coil voltage12V DC
Contact current max16A
AC contacts rating @R16A / 250V AC
DC contacts rating @R16A / 24V DC
Switched voltagemax. 24V DC,
Relay variantbistable,
MountingPCB
Coil resistance192?
Operate time, Release time15ms
Body dimensions29x12.7x15.7mm
Coil power consumption0.75W
Operating temperature-40...85?C
Relay seriesG5RL-K
Contact resistance100m?
Terminal pitch5mm
Coil current62.5mA
Leadsfor PCB
Designtwo coils

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMEG5RL-K1A-E-12DC19511 @ $6.86, 5 @ $6.23, 25 @ $4.86, 100 @ $4.52, 500 @ $4.21
