EM3312T 10HP, 3475RPM, 3PH, 60HZ, 213T, 3728M, OPSB, F1

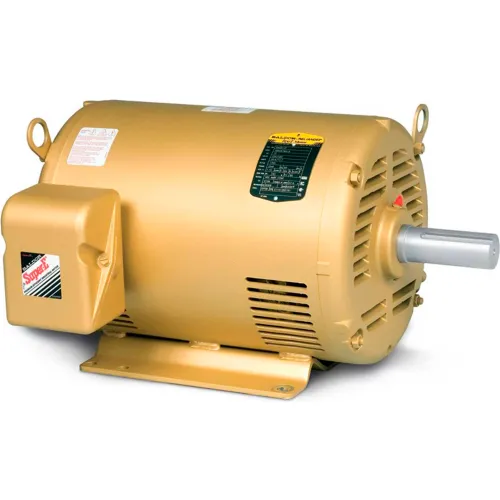

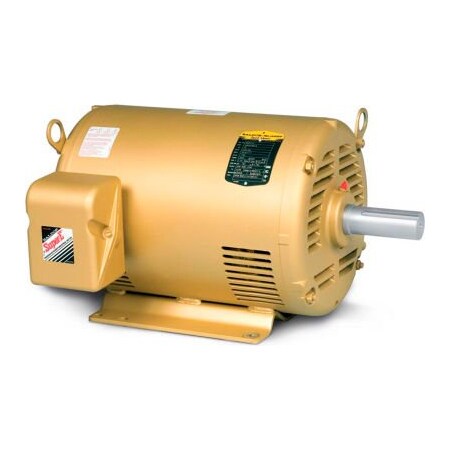

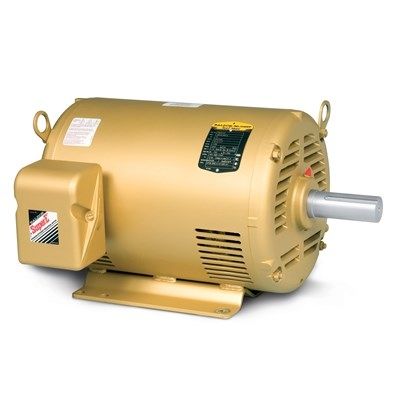

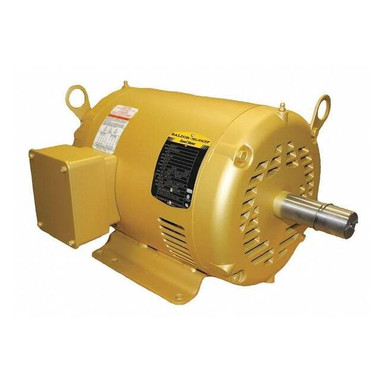

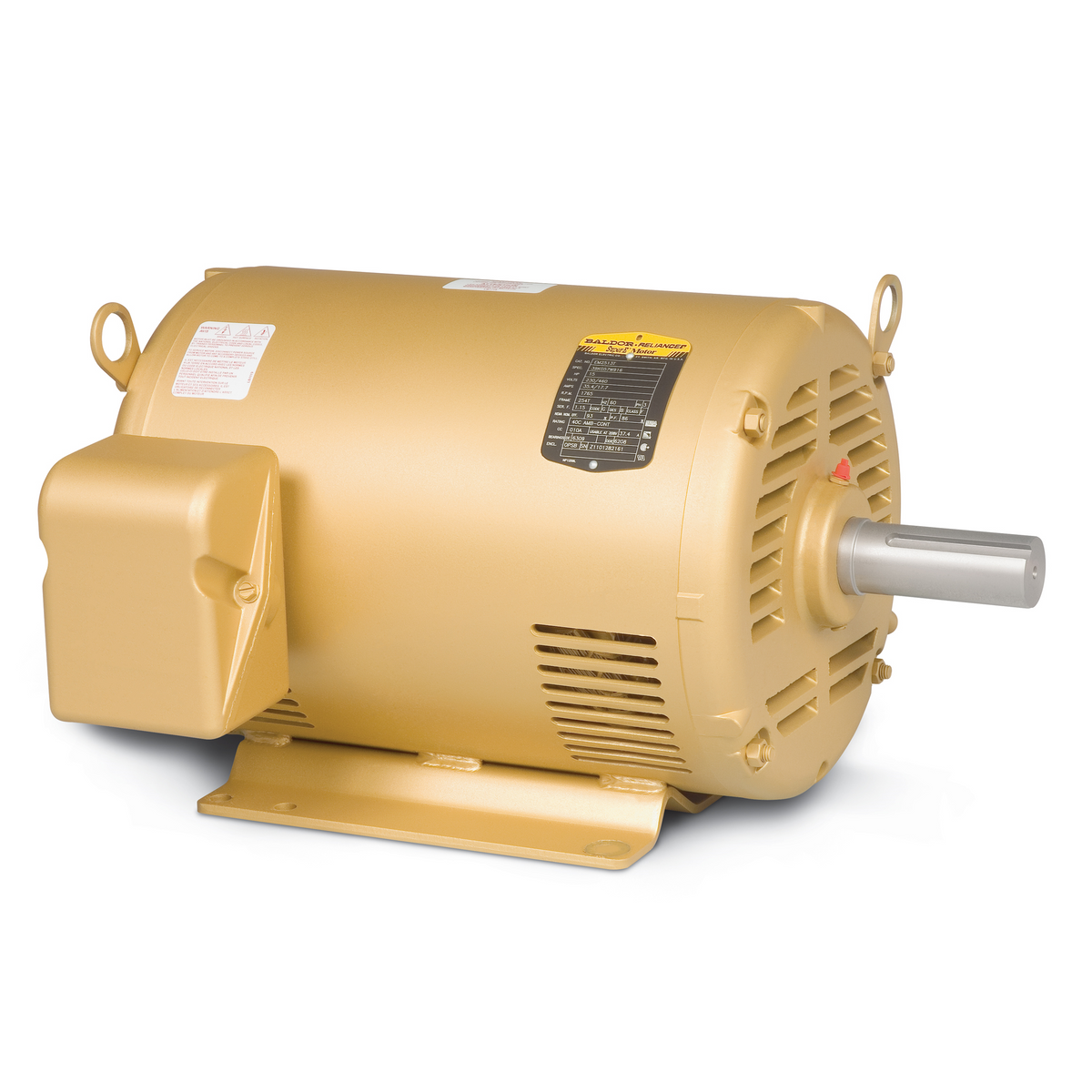

Baldor Electric, EM3312T, 10HP, 3475RPM, 3PH, 460V;230V;208V, 213T Frame, Standard Flange, Foot Mount, OPEN, General Purpose Motor

Baldor EM3312T10HP 3500RPM 3PH 60HZ 213T 3736MOPSB F1

Heavy duty frames. Ball bearings. Moisture resistant ISR® (Inverter Spike Resistant) copper windings. Low-loss electrical lamination grade steel. Three year warranty. Typical Applications: Typical applications include operations where continuous or frequent duty is required. Super-E Motors are designed to conserve energy over extended time periods. Inverter rated per NEMA MG1 Part 31.4.4.2. Suitable for variable torque applications and 20:1 constant torque speed range with properly sized and adjusted variable frequency drives., Lot of 1

<p><ul><li>Copper windings, ball bearings and heavy-duty steel or cast iron frames</li><li>Mount in any position</li><li>EM Super-E/XE motors have NEMA Premium efficiency</li><li>Three-year warranty</li><li>Applications: Pumps, compressors, fans, conveyors, machine tools and other general-purpose three-phase applications</li></ul></p> ,<p><b>Specifications: </b><ul><li>Motor Phase:-3 ph </li><li> Motor Horsepower:-10.0 hp, 10 hp </li><li> Synchronous RPM:-3600 rpm </li><li> Motor Supply Voltage:-208-230/460 V </li><li> Frame Size:-213T </li><li> Enclosure Type:-ODP (Open Drip-Proof) </li><li> Frequency Rating:-60 Hz </li><li> Mounting Type:-Footed </li><li> Duty / Condition Type:-Continuous Duty </li><li> Full Load Current:-11.40 A </li><li> Full Load Efficiency:-89.50 % </li><li> Amps @ Voltage:-12.0 A @ 460 V; 24.0 A @ 230 V; 25.6 A @ 208 V </li><li> Volts @ Frequency:-208 V @ 60 Hz; 230 V @ 60 Hz; 460 V @ 60 Hz </li><li> Shaft Diameter:-1.38 in </li><li> Overall Length (C-Dimension):-16.32 in </li><li> Warranty:-3 Year Warranty </li><li> Bearing Type:-Ball </li><li> NEMA Design Class:-B </li><li> Service Factor:-1.15 </li><li> Frame Material:-Steel </li><li> Insulation Class:-F </li><li> IP Rating:-22/44 </li><li> Standards Met:-UR, CSA EEV, CSA </li><li> Weight:-121.00 lbs </li><li> Applications:-Pumps, compressors, fans, conveyors, machine tools and other general purpose three phase applications. </li><li> Additional Details:-Copper windings, ball bearings and heavy duty steel or cast iron frames. </li><li> Harmonization Code:-8501.52.4000 </li></ul></p>

<p><b>Specifications: </b><ul><li>Item:-General Purpose Motor</li><li>Motor Application:-General Application</li><li>Motor Design:-3-Phase</li><li>Motor Enclosure Design:-Open Dripproof</li><li>HP:-10</li><li>Nameplate RPM:-3475</li><li>Frame:-213T</li><li>Voltage:-208-230/460</li><li>Hz:-60</li><li>Phase:-3</li><li>Full Load Amps:-25.6-24/12</li><li>Mounting:-Base</li><li>Motor Mounting Position:-Horizontal</li><li>Motor Thermal Protection:-None</li><li>Insulation Class:-F</li><li>Service Factor:-1.15</li><li>Bearings:-Ball</li><li>Frame Material:-Steel</li><li>Max. Ambient Temp.:-40 Degrees C</li><li>Rotation:-CW/CCW</li><li>Shaft Dia.:-1-3/8"</li><li>Shaft Length:-3-3/8"</li><li>Length Less Shaft:-14-15/16"</li><li>Overall Length:-16-5/16"</li><li>Motor Shaft Design:-Keyed</li><li>RPM Range:-3001-3600</li><li>Standards:-UL Recognized, CSA Certified</li><li>Duty:-Continuous</li><li>Efficiency Group:-NEMA Premium(R)</li><li>Nominal Efficiency:-89.5%</li><li>Warranty (Years):-3</li><li>RPM Group:-3001-3600</li><li>UNSPSC:-26101612</li></ul></p>
