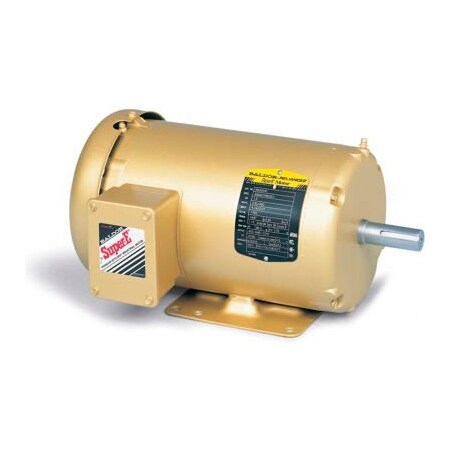

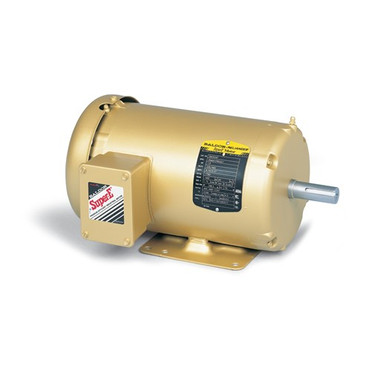

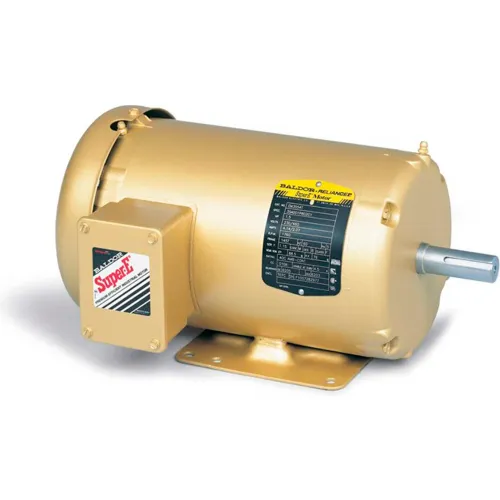

EM3556 1HP, 1155RPM, 3PH, 60HZ, 56, 3526M, TEFC, F1, N

Baldor Electric, EM3556, 1HP, 1155RPM, 3PH, 460V;230V;208V, 56 Frame, Standard Flange, Foot Mount, TEFC, General Purpose Motor

Baldor EM35561HP 1150RPM 3PH 60HZ 56 3528M TEFCF1

<p><ul><li>Suitable for mounting in any position</li><li>Ball bearings, heavy-gauge steel and cast-iron frames, gasketed conduit boxes, 1.15 service factor or greater, and low-loss electrical grade lamination steel</li><li>Super-E motors have NEMA Premium efficiency and 3 year warranty</li><li>Applications: Pumps, compressors, fans, conveyors, machine tools and other general purpose three phase applications</li></ul></p> ,<p><b>Specifications: </b><ul><li>Motor Phase:-3 ph </li><li> Motor Horsepower:-1.00 hp, 1 hp </li><li> Synchronous RPM:-1200 rpm </li><li> Motor Supply Voltage:-208-230/460 V </li><li> Frame Size:-56 </li><li> Enclosure Type:-TEFC (Totally Enclosed Fan Cooled) </li><li> Frequency Rating:-60 Hz </li><li> Mounting Type:-Footed </li><li> Duty / Condition Type:-Continuous Duty </li><li> Full Load Current:-1.80 A </li><li> Full Load Efficiency:-82.50 % </li><li> Amps @ Voltage:-3.6 A @ 208 V; 1.8 A @ 230 V </li><li> Volts @ Frequency:-208 V @ 60 Hz; 230 V @ 60 Hz; 460 V @ 60 Hz </li><li> Shaft Diameter:-0.63 in </li><li> Overall Length (C-Dimension):-13.23 in </li><li> Service Factor:-1.15 </li><li> Frame Material:-Steel </li><li> Insulation Class:-F </li><li> IP Rating:-44 </li><li> Standards Met:-UR, CSA EEV, CSA </li><li> Weight:-41.00 lbs </li><li> Applications:-Pumps, compressors, fans, conveyors, machine tools and other general purpose three phase applications. </li><li> Additional Details:-Suitable for mounting in any position. Ball bearings, heavy-gauge steel and cast-iron frames, gasketed conduit boxes, 1.15 service factor or greater, and low-loss electrical grade lamination steel. </li><li> Harmonization Code:-8501.51.6040 </li></ul></p>

<p><b>Specifications: </b><ul><li>Item:-General Purpose Motor</li><li>Motor Application:-General Application</li><li>Motor Design:-3-Phase</li><li>Motor Enclosure Design:-Totally Enclosed Fan-Cooled</li><li>HP:-1</li><li>Nameplate RPM:-1155</li><li>Frame:-56</li><li>Voltage:-208-230/460</li><li>Hz:-60</li><li>Phase:-3</li><li>Full Load Amps:-3.6/1.8</li><li>Mounting:-Base</li><li>Motor Mounting Position:-Horizontal</li><li>Motor Thermal Protection:-None</li><li>Insulation Class:-F</li><li>Service Factor:-1.15</li><li>Bearings:-Ball</li><li>Frame Material:-Steel</li><li>Max. Ambient Temp.:-40 Degrees C</li><li>Rotation:-CW/CCW</li><li>Shaft Dia.:-5/8"</li><li>Shaft Length:-1-7/8"</li><li>Length Less Shaft:-11-11/32"</li><li>Overall Length:-13-1/4"</li><li>Motor Shaft Design:-Keyed</li><li>RPM Range:-1101-1200</li><li>Standards:-UL Recognized, CSA Certified</li><li>Duty:-Continuous</li><li>Efficiency Group:-NEMA Premium(R)</li><li>Nominal Efficiency:-82.5%</li><li>Warranty (Years):-3</li><li>RPM Group:-1101-1200</li><li>UNSPSC:-26101612</li></ul></p>
