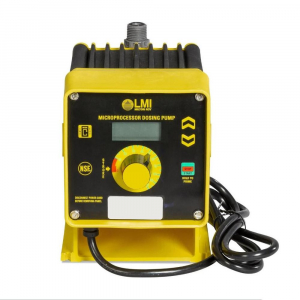

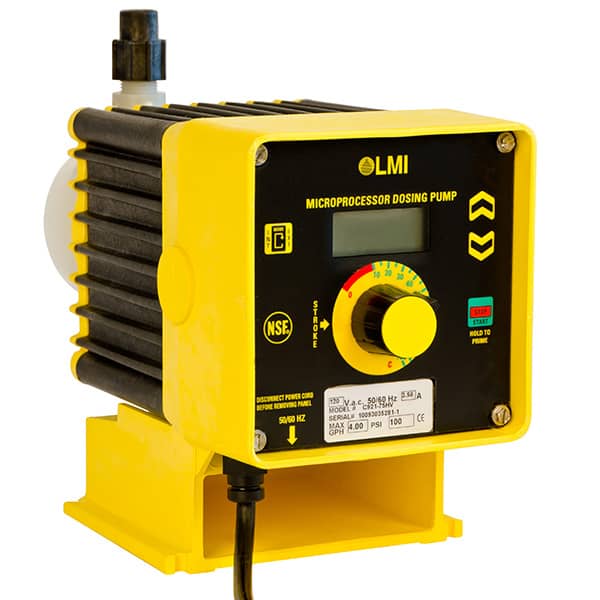

C Series Information General Description LMI Series C chemical metering pumps shall be positive displacement, Liquifram type pumps that are UL and CUL approved. Output volume shall be adjustable while pumps are in operation from zero to maximum capacity. Pump Controls Adjustment shall be by means of readily accessible dial knobs, one for changing stroke length and the other for changing stroke frequency. Both knobs are to be located opposite the liquid handling end. Drive Assembly The pump drive shall be totally enclosed with no exposed moving parts. Electronics shall be housed in chemical resistant enclosure at the rear of the pump for maximum protection against chemical spillage. Electrical power consumption shall not exceed 44 watts per hour under full speed and maximum pressure conditions. Pump weight shall not exceed 20 lbs (9.1 kg). Pressure Relief To eliminate need for pressure relief valve, Liquifram shall automatically stop pulsating when discharge pressure exceeds pump pressure rating by not more than 35%. Materials of Construction Chemical metering pump housing shall be of chemically resistant glass fiber reinforced thermoplastic with a glass fiber reinforced polypropylene EPU carrier. All exposed fasteners shall be stainless steel. Valve seat and seal ring shall be renewable by replacing only the combination seat-seal ring or cartridge valve assembly. Check Valve / Tubing Connections A total of 16 ft (4.8 m) of tubing shall be provided per pump complete with compressing connections (on models with tubing connections). A foot valve with integral one piece strainer shall be provided for the suction line (on non-high viscosity models with tubing connections), and an injection check/back pressure valve with 1/2 NPT male connection for the injection point (on models with tubing connections). LMI Pumps C921-368SI Series C Chemical Metering Pump, 4 GPH @ 100, 4-20 mA Input or pulse divide or multiply with Dual Manual Control, Molded PVC / PVC, 4 Function Valve
