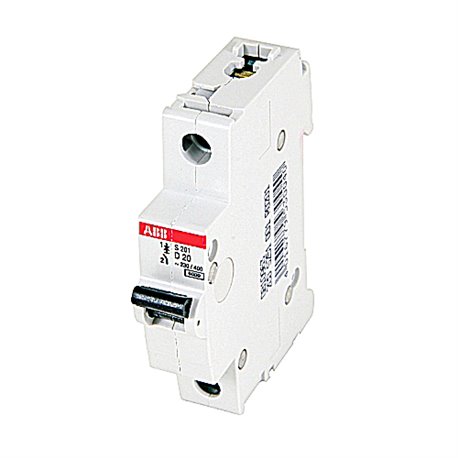

ABB - S201-D20 - Circuit Breaker,Mini,1 Pole,D Curve,20A,6kA,480Y/277VAC,Handle,Screw Terminals - RS

ABB S200 MINIATURE CIRCUIT BREAKER S201-D20 CIRCUIT BREAKER, 1-P , 20A/277V,D

ABB S200-D Low voltage 1-pole miniature circuit breaker has 480Y/277 VAC voltage rating and 20 A amp rating with a interrupt rating of 6 kA. Brand Name|ABB#MFR Part Number|S201-D20#UPC|662019168906#UNSPSC|39121603#Item|Miniature Circuit Breaker#Type|Low Voltage#Series|S200-D#Voltage Rating|480Y/277 VAC#Amperage Rating|20 A#Frequency Rating|50/60 Hz#Interrupt Rating|6 kA#Trip Type|Thermal/Magnetic#Trip Range|3 - 5 A Magnetic and 1.13 - 1.45 A Thermal#Number of Poles|1#Actuator Type|Toggle#Wire Size|18 - 4 AWG Conductor, 18 - 8 AWG Busbar#Terminal Type|Screw#Enclosure Type|IP20#Mounting Type|DIN-Rail#Temperature Rating|-25 to 55 deg C#Dimensions|88 mm Height x 17.5 mm Width x 69 mm Depth#Material|Insulation Group II, RAL 7035#Standard/Approvals|IEC/EN 60898-1, IEC/EN 60947-2, UL 1077, CSA 22.2#Application|Equipment Protection in Commercial Appliances, Protection of Control Circuits Against Overcurrent Faults, Computer Equipment and Other Computer Peripheral Devices
