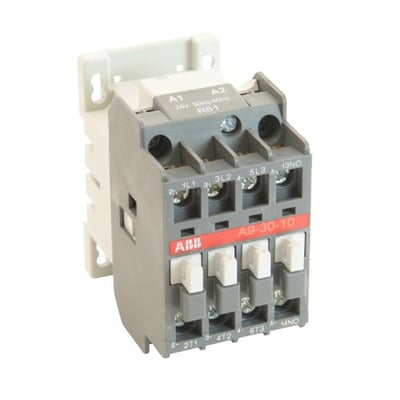

ABB - A9-30-10-81 - Contactor,NEMA,3 Pole,9A,24VAC@60Hz,24VAC@50Hz Coil,DIN Rail/Panel Mount - RS

Part Number: 662019880754 <br> Part: ABB A9-30-10-81 3P, Contactor, IEC, 24V AC <br> 9 Motor Current Amp, 21 General Purpose Amp, 600V Rated, 24V AC Coil. A-Line Series, A9 Frame, 3-Pole, IEC Contactor with 1 N.O. Auxiliary Contact Block. <br> Family / Style: A-Line <br> Amps: 9 <br> Poles: 3 <br> Type: IEC, Contactor, Lighting Contactor, Non-Reversing <br> Volts AC Control: 24 <br> Also known as: 662019880754, contactor, 3-pole, IEC, ABBA9301081, ABB, A9-30-10-81, 7-15 Amp IEC Contactors, NEMA & IEC Contactors, Starters & Contactors, Control, Automation <br> Equivalent to: <ul></ul>

ABB A-Line non-reversing 3-pole contactor has 24 VAC coil voltage and 9 A load current with a power rating of 2 hp at 200/208 VAC 3-phase. Brand Name|ABB#MFR Part Number|A9-30-10-81#UPC|662019880754#UNSPSC|39121529#Item|Contactor#Type|Non-Reversing#Series|A-Line, A9#Coil Voltage|24 VAC#Full Load Current|9 A at 3-Phase, 21 A at 1-Phase#Power Rating|2 hp at 200/208 VAC 3-Phase, 2 hp at 230/240 VAC 3-Phase, 5 hp at 460/480 VAC 3-Phase, 7.5 hp at575/600 VAC 3-Phase, 1/2 hp at 115 VAC 3-Phase, 2 hp at 230/240 VAC 1-Phase#Number of Poles|3#Frequency Rating|50/60 Hz#Contact Form|1 NO#Terminal Type|Screw#Enclosure Type|NEMA 00 - 3#Mounting Type|Snap-On DIN-Rail#Dimensions|2.91 in Height x 1.73 in Width x 2.91 in Depth#Standard/Approvals|CE Certified, CSA LR56745, IEC Approved, UL E39231#Application|For controlling 3-phase motors and for controlling power circuits corresponding to their operating characteristics up to 690 and even 1000 VAC and 440 VDC
