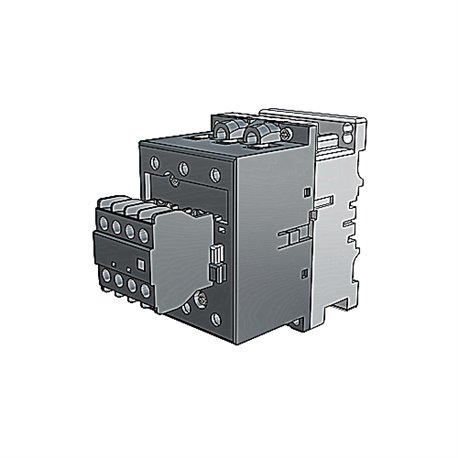

ABB - A75-30-22-84 - Contactor, NEMA, 3 P, 80A, 110-120VAC@60Hz, 110VAC@50Hz Coil, DIN Rail/Panel - Allied Electronics & Automation, part of RS Group

ABB A75-30-22-84 A LINE, (30-75), 3-POLE A75 3P CONTR.110/50,110-120/60

ABB A-Line non-reversing 3-pole contactor has 110 - 120 VAC coil voltage and 80 A load current with a power rating of 25 hp at 200/208 VAC 3-phase. Brand Name|ABB#MFR Part Number|A75-30-22-84#UPC|662019679266#UNSPSC|39121529#Item|Contactor#Type|Non-Reversing#Series|A-Line, A75#Coil Voltage|110 - 120 VAC#Full Load Current|80 A at 3-Phase, 105 A at 1-Phase#Power Rating|25 hp at 200/208 VAC 3-Phase, 30 hp at 230/240 VAC 3-Phase, 60 hp at 460/480 VAC 3-Phase, 75 hp at 575/600 VAC 3-Phase, 7.5 hp at 115 VAC 1-Phase, 30 hp at 230/240 VAC 1-Phase#Number of Poles|3#Frequency Rating|50/60 Hz#Contact Form|2 NO - 2 NC#Terminal Type|Screw#Enclosure Type|NEMA 00 - 3#Mounting Type|Snap-On DIN-Rail#Dimensions|4.33 in Height x 3.22 in Width x 4.25 in Depth#Standard/Approvals|CE Certified, CSA LR56745, IEC Approved, UL E39231#Application|For controlling 3-phase motors and for controlling power circuits corresponding to their operating characteristics up to 690 and even 1000 VAC and 440 VDC
