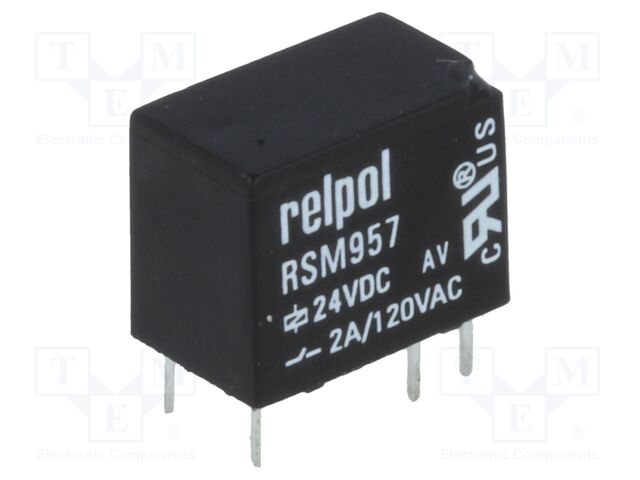

RELPOL RSM957-0111-85-S024 | Relay: electromagnetic; SPDT; Ucoil: 24VDC; 2A; 2A/120VAC; 2A/24VDC

RELPOL . RSM957-0111-85-S024

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerRELPOL
CategoryL1Relays and Contactors
CategoryL2Relays
CategoryL3Electromagnetic Relays
CategoryL4Miniature Electromagnetic Relays
Extra Product NameRELPOL RSM957-0111-85-S024 | Relay: electromagnetic; SPDT; Ucoil: 24VDC; 2A; 2A/120VAC; 2A/24VDC
atoms, moq, multiple, tierMinQty11
jsonUrlData9617a26bfdc047f793d863030066ee6f.
jsonUrlData236a5a29efd6bea61f5f1
keywordsRELPOL, RSM957-0111-85-S024, RSM957-P-24
MPNRSM957-0111-85-S024
qtyInStock0
SKURSM957-P-24
snippetRELPOL RSM957-0111-85-S024 | Relay: electromagnetic; SPDT; Ucoil: 24VDC; 2A; 2A/120VAC; 2A/24VD
tierMinQty25
tierMinQty320
tierMinQty4100
tierMinQty5500
tierPrice13.63
tierPrice23.25
tierPrice32.37
tierPrice42.28
tierPrice52.2
Type of relayelectromagnetic
Contacts configurationSPDT
Rated coil voltage24V DC
Contact current max2A
AC contacts rating @R2A / 120V AC
DC contacts rating @R2A / 24V DC
Switched voltagemax. 24V DC,
Relay variantsubminiature
MountingPCB
Coil resistance2.88k?
Coil voltage min18V DC
Coil voltage max31.2V DC
Operate time, Release time5ms
Body dimensions12.6x10x7.8mm
Coil power consumption200mW
IP ratingIP64
Operating temperature-30...70?C
Relay seriesRSM957
Contact resistance100m?
Contact materialAg/Au 0,2?m
Terminal pitch2.54mm
OEM number2611740

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMERSM957-P-24111 @ $3.63, 5 @ $3.25, 20 @ $2.37, 100 @ $2.28, 500 @ $2.20
