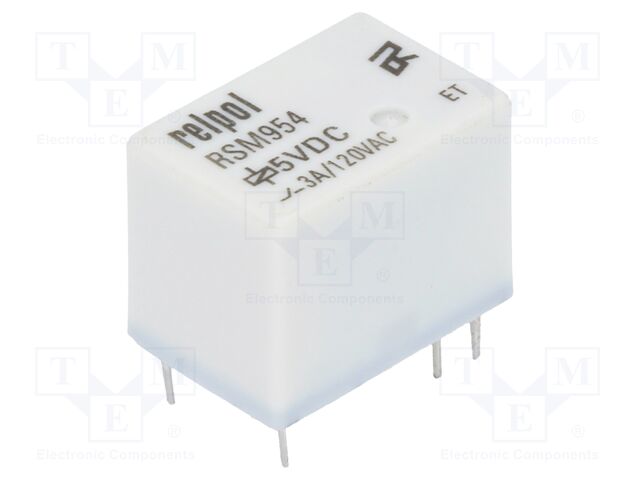

RELPOL RSM954-0111-85-1005 | Relay: electromagnetic; SPDT; Ucoil: 5VDC; 3A; 3A/120VAC; 3A/24VDC

RELPOL . RSM954-0111-85-1005

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerRELPOL
Extra Product NameRELPOL RSM954-0111-85-1005 | Relay: electromagnetic; SPDT; Ucoil: 5VDC; 3A; 3A/120VAC; 3A/24VDC
Weight3.5
WeightUnitg
Weight_AttribWeight
atoms, moq, multiple, tierMinQty11
jsonUrlData0c4b46aca17df6763b8c5851a829faa5.5
jsonUrlData29fb654e4e0ebe1b46788
MPNRSM954-0111-85-1005
qtyInStock0
SKURSM954-P-5V
snippetRELPOL RSM954-0111-85-1005 | Relay: electromagnetic; SPDT; Ucoil: 5VDC; 3A; 3A/120VAC; 3A/24VD
tierMinQty25
tierMinQty332
tierMinQty496
tierMinQty5512
tierPrice12.37
tierPrice22.15
tierPrice31.72
tierPrice41.56
tierPrice51.4
Type of relayelectromagnetic
Contacts configurationSPDT
Rated coil voltage5V DC
Contact current max3A
AC contacts rating @R3A / 120V AC
DC contacts rating @R3A / 24V DC
Switched voltagemax. 24V DC,
Relay variantsubminiature
MountingPCB
Coil resistance69?
Coil voltage min3.75V DC
Coil voltage max6.5V DC
Operate time8ms
Body dimensions15.4x10.4x11.4mm
Release time4ms
Coil power consumption360mW
IP ratingIP64
Mechanical durability10000000 cycles
Operating temperature-25...55?C
Relay seriesRSM954
Contact resistance100m?
Electrical life100000 cycles
Contact materialAg/Au 0,2?m
Terminal pitch2.54mm
OEM number2611646

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMERSM954-P-5V111 @ $2.37, 5 @ $2.15, 32 @ $1.72, 96 @ $1.56, 512 @ $1.40
