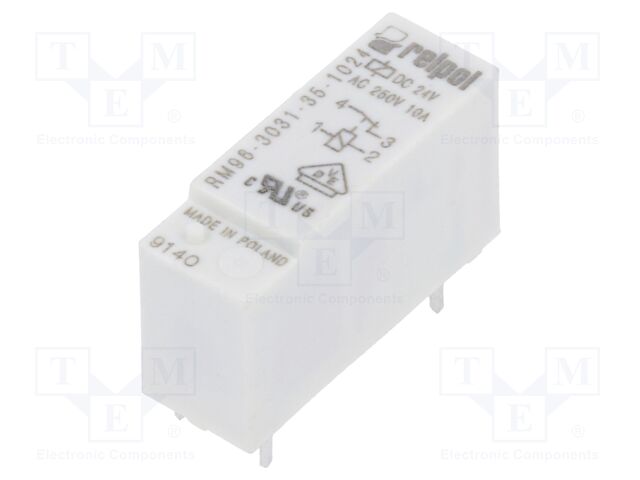

RELPOL RM96-3031-35-1024 | Relay: electromagnetic; SPST-NC; Ucoil: 24VDC; 8A; 8A/250VAC; PCB

RELPOL . RM96-3031-35-1024

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerRELPOL
CategoryL1Relays and Contactors
CategoryL2Relays
CategoryL3Electromagnetic Relays
CategoryL4Miniature Electromagnetic Relays
DimensionUnitmm
Extra Product NameRELPOL RM96-3031-35-1024 | Relay: electromagnetic; SPST-NC; Ucoil: 24VDC; 8A; 8A/250VAC; PCB
atoms, moq, multiple, tierMinQty11
height16.2
height_AttribHeight
jsonUrlData3f923735f74dd46d920fbe33d4363cfe.
jsonUrlData2b7e520f5b363b79b3707
keywordsRELPOL, RM96-3031-35-1024
MPN, SKURM96-3031-35-1024
qtyInStock236
snippetRELPOL RM96-3031-35-1024 | Relay: electromagnetic; SPST-NC; Ucoil: 24VDC; 8A; 8A/250VAC; PC
tierMinQty25
tierMinQty350
tierMinQty4100
tierMinQty5500
tierPrice11.72
tierPrice21.54
tierPrice31.29
tierPrice41.22
tierPrice51.11
Type of relayelectromagnetic
Contacts configurationSPST-NC
Rated coil voltage24V DC
Contact current max8A
AC contacts rating @R8A / 250V AC
DC contacts rating @R8A / 24V DC
Switched voltagemax. 120V DC,
Relay variantminiature
MountingPCB
Coil resistance2.2k?
Coil voltage min16.8V DC
Coil voltage max54V DC
Operate time10ms
Body dimensions28x10x16.2mm
Release time5ms
Coil power consumption300mW
IP ratingIP67
Mechanical durability20000000 cycles
Operating temperature-40...80?C
Relay seriesRM96
Contact resistance100m?
Contact materialAgSnO
Terminal pitch5mm
Height16.2mm
OEM number852873
Number of pins4

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMERM96-3031-35-1024123611 @ $1.72, 5 @ $1.54, 50 @ $1.29, 100 @ $1.22, 500 @ $1.11
