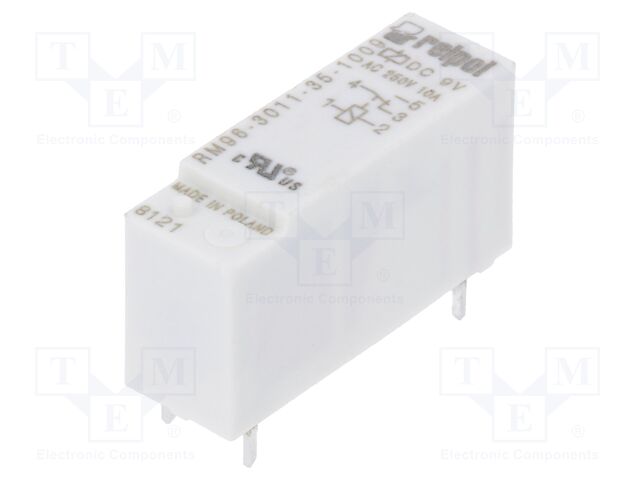

RELPOL RM96-3011-35-1009 | Relay: electromagnetic; SPDT; Ucoil: 9VDC; 8A; 8A/250VAC; 8A/24VDC

RELPOL . RM96-3011-35-1009

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerRELPOL
CategoryL1Relays and Contactors
CategoryL2Relays
CategoryL3Electromagnetic Relays
CategoryL4Miniature Electromagnetic Relays
DimensionUnitmm
Extra Product NameRELPOL RM96-3011-35-1009 | Relay: electromagnetic; SPDT; Ucoil: 9VDC; 8A; 8A/250VAC; 8A/24VDC
atoms, moq, multiple, tierMinQty11
height16.2
height_AttribHeight
jsonUrlData91150e9dc23dfd9d368938a195344edc.
jsonUrlData2709bcaf85e0933df6b91
keywordsRELPOL, RM96-3011-35-1009
MPN, SKURM96-3011-35-1009
qtyInStock1179
snippetRELPOL RM96-3011-35-1009 | Relay: electromagnetic; SPDT; Ucoil: 9VDC; 8A; 8A/250VAC; 8A/24VD
tierMinQty2, Number of pins5
tierMinQty320
tierMinQty4100
tierMinQty5500
tierPrice11.58
tierPrice21.38
tierPrice31.3
tierPrice41.26
tierPrice51.21
Type of relayelectromagnetic
Contacts configurationSPDT
Rated coil voltage9V DC
Contact current max8A
AC contacts rating @R8A / 250V AC
DC contacts rating @R8A / 24V DC
Switched voltagemax. 120V DC,
Relay variantminiature
MountingPCB
Coil resistance360?
Coil voltage min6.3V DC
Coil voltage max22V DC
Operate time10ms
Body dimensions30x10x16.2mm
Release time5ms
Coil power consumption300mW
IP ratingIP67
Mechanical durability20000000 cycles
Operating temperature-40...80?C
Relay seriesRM96-1P
Contact resistance100m?
Contact materialAgSnO
Terminal pitch3.2mm
Height16.2mm
OEM number852842

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMERM96-3011-35-10091117911 @ $1.58, 5 @ $1.38, 20 @ $1.30, 100 @ $1.26, 500 @ $1.21
