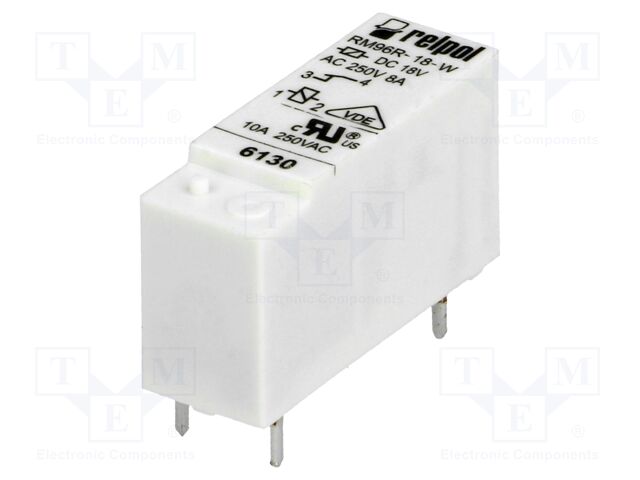

RELPOL RM96-1031-35-1018 | Relay: electromagnetic; SPST-NC; Ucoil: 18VDC; 8A; 8A/250VAC; PCB

RELPOL . RM96-1031-35-1018

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerRELPOL
CategoryL1Relays and Contactors
CategoryL2Relays
CategoryL3Electromagnetic Relays
CategoryL4Miniature Electromagnetic Relays
DimensionUnitmm
Extra Product NameRELPOL RM96-1031-35-1018 | Relay: electromagnetic; SPST-NC; Ucoil: 18VDC; 8A; 8A/250VAC; PCB
atoms, moq, multiple1
height16.2
height_AttribHeight
jsonUrlDataff2eb4de063840b152bdc41c893a223e.
jsonUrlData23638ac46fd896b39a1ab
keywordsRELPOL, RM96-1031-35-1018, Relays and Contactors, Relays, Electromagnetic Relays, Miniature Electromagnetic Relays
MPN, SKURM96-1031-35-1018
qtyInStock0
snippetRELPOL RM96-1031-35-1018 | Relay: electromagnetic; SPST-NC; Ucoil: 18VDC; 8A; 8A/250VAC; PC
Type of relayelectromagnetic
Contacts configurationSPST-NC
Rated coil voltage18V DC
Contact current max8A
AC contacts rating @R8A / 250V AC
DC contacts rating @R8A / 24V DC
Switched voltagemax. 120V DC,
Relay variantminiature
MountingPCB
Coil resistance1.5k?
Coil voltage min12.6V DC
Coil voltage max44V DC
Operate time10ms
Body dimensions28x10x16.2mm
Release time5ms
Coil power consumption300mW
IP ratingIP67
Mechanical durability20000000 cycles
Operating temperature-40...80?C
Relay seriesRM96
Contact resistance100m?
Contact materialAgCdO
Terminal pitch5mm
Height16.2mm
Number of pins4

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMERM96-1031-35-101811
TMERM96-R-18V11
