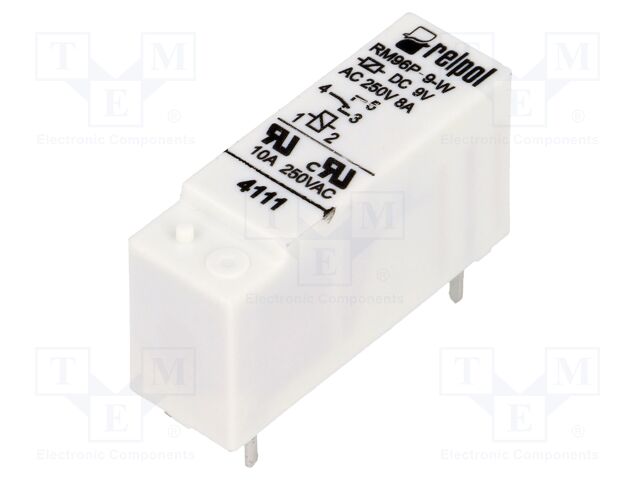

RELPOL RM96-1011-35-1009 | Relay: electromagnetic; SPDT; Ucoil: 9VDC; 8A; 8A/250VAC; 8A/24VDC

RELPOL . RM96-1011-35-1009

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerRELPOL
CategoryL1Relays and Contactors
CategoryL2Relays
CategoryL3Electromagnetic Relays
CategoryL4Miniature Electromagnetic Relays
DimensionUnitmm
Extra Product NameRELPOL RM96-1011-35-1009 | Relay: electromagnetic; SPDT; Ucoil: 9VDC; 8A; 8A/250VAC; 8A/24VDC
atoms, moq, multiple1
height16.2
height_AttribHeight
jsonUrlData8d1b9e780f4f18d5e6a665efccc88a9d.
jsonUrlData23c26bad7fc648efd6c90
keywordsRELPOL, RM96-1011-35-1009, RM96-P-9V
MPNRM96-1011-35-1009
qtyInStock0
SKURM96-P-9V
snippetRELPOL RM96-1011-35-1009 | Relay: electromagnetic; SPDT; Ucoil: 9VDC; 8A; 8A/250VAC; 8A/24VD
Type of relayelectromagnetic
Contacts configurationSPDT
Rated coil voltage9V DC
Contact current max8A
AC contacts rating @R8A / 250V AC
DC contacts rating @R8A / 24V DC
Switched voltagemax. 120V DC,
Relay variantminiature
MountingPCB
Coil resistance360?
Coil voltage min6.3V DC
Coil voltage max22V DC
Operate time10ms
Body dimensions28x10x16.2mm
Release time5ms
Coil power consumption300mW
IP ratingIP67
Mechanical durability20000000 cycles
Operating temperature-40...80?C
Relay seriesRM96
Contact resistance100m?
Contact materialAgCdO
Terminal pitch3.2mm
Height16.2mm

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMERM96-P-9V11
RS Delivers134-8409111 @ $5.91
RS Online134840911
TMERM96-1011-35-100911
