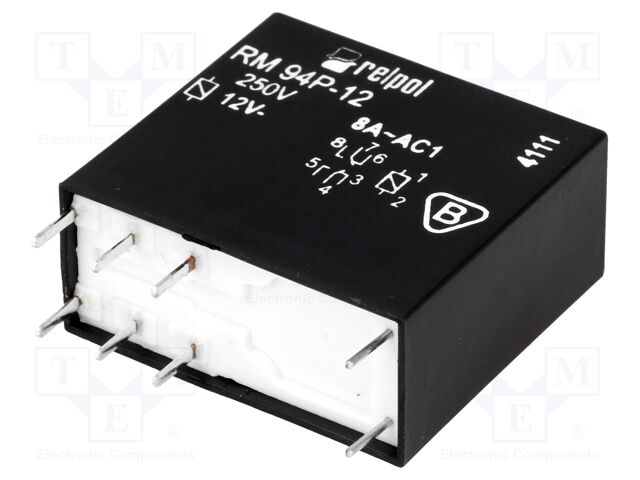

RELPOL RM94-1012-25-1012 | Relay: electromagnetic; DPDT; Ucoil: 12VDC; 8A; 8A/250VAC; 8A/24VDC

RELPOL . RM94-1012-25-1012

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerRELPOL
CategoryL1Relays and Contactors
CategoryL2Relays
CategoryL3Electromagnetic Relays
CategoryL4Miniature Electromagnetic Relays
Extra Product NameRELPOL RM94-1012-25-1012 | Relay: electromagnetic; DPDT; Ucoil: 12VDC; 8A; 8A/250VAC; 8A/24VDC
atoms, moq, multiple1
jsonUrlDatae874419135551a4095d4b267d90658fd.
jsonUrlData2bb890a0f315dd543fb50
keywordsRELPOL, RM94-1012-25-1012, RM94-P-12V, Relays and Contactors, Relays, Electromagnetic Relays, Miniature Electromagnetic Relays
MPNRM94-1012-25-1012
qtyInStock0
SKURM94-P-12V
snippetRELPOL RM94-1012-25-1012 | Relay: electromagnetic; DPDT; Ucoil: 12VDC; 8A; 8A/250VAC; 8A/24VD
Type of relayelectromagnetic
Contacts configurationDPDT
Rated coil voltage12V DC
Contact current max8A
AC contacts rating @R8A / 250V AC
DC contacts rating @R8A / 24V DC
Switched voltagemax. 250V DC,
Relay variantminiature
MountingPCB
Coil resistance170?
Coil voltage min7.9V DC
Coil voltage max16.2V DC
Operate time7ms
Body dimensions28x12.5x26mm
Release time2ms
Coil power consumption800mW
IP ratingIP40
Operating temperature-40...70?C
Relay seriesRM94
Contact resistance100m?
Terminal pitch5mm
