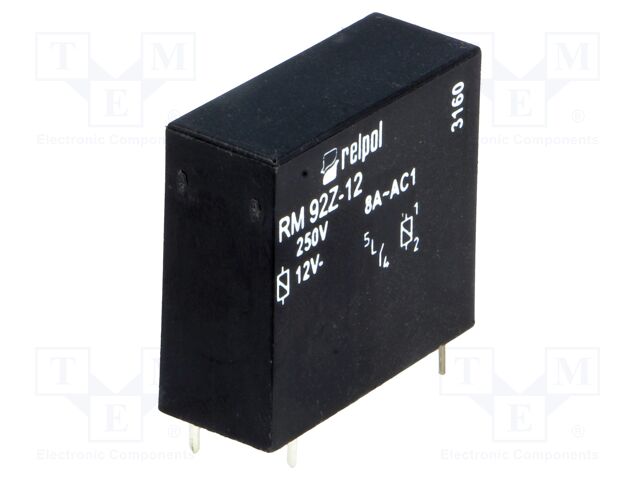

RELPOL RM92-1021-25-1012 | Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 8A; 8A/250VAC; PCB

RELPOL . RM92-1021-25-1012

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerRELPOL
CategoryL1Relays and Contactors
CategoryL2Relays
CategoryL3Electromagnetic Relays
CategoryL4Miniature Electromagnetic Relays
Extra Product NameRELPOL RM92-1021-25-1012 | Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 8A; 8A/250VAC; PCB
Weight17
WeightUnitg
Weight_AttribWeight
atoms, moq, multiple1
jsonUrlData2af6f0aa844e73688ef1e382ce42a2d6.5
jsonUrlData250bf3704f674ed710456
keywordsRELPOL, RM92-1021-25-1012, RM92-Z-12VDC, Relays and Contactors, Relays, Electromagnetic Relays, Miniature Electromagnetic Relays
MPNRM92-1021-25-1012
qtyInStock0
SKURM92-Z-12VDC
snippetRELPOL RM92-1021-25-1012 | Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 8A; 8A/250VAC; PC
Type of relayelectromagnetic
Contacts configurationSPST-NO
Rated coil voltage12V DC
Contact current max8A
AC contacts rating @R8A / 250V AC
DC contacts rating @R8A / 24V DC
Switched voltagemax. 250V DC,
Relay variantminiature
MountingPCB
Coil resistance170?
Coil voltage min7.4V DC
Coil voltage max16.2V DC
Body dimensions28x11.5x26mm
Coil power consumption800mW
IP ratingIP40
Operating temperature-40...70?C
Relay seriesRM92
Contact resistance100m?
Terminal pitch3.5mm
Related itemsGD35

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMERM92-Z-12VDC11
