RELPOL RM85-2021-35-5024 | Relay: electromagnetic; SPST-NO; Ucoil: 24VAC; Icontacts max: 16A

RELPOL . RM85-2021-35-5024

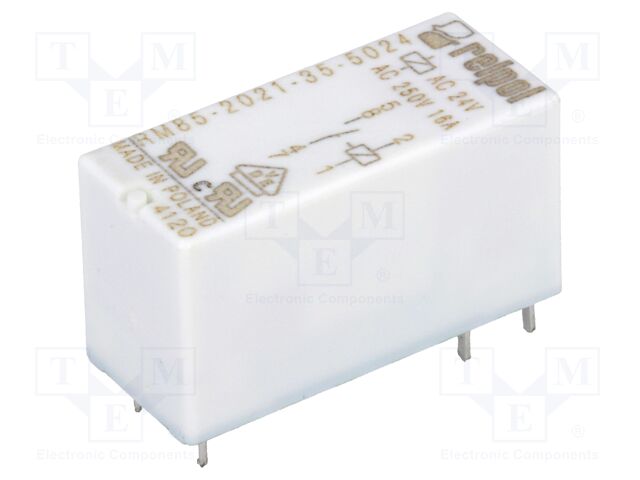

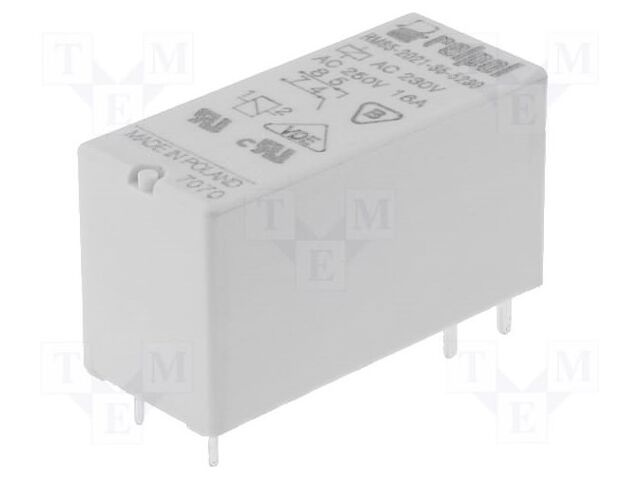

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerRELPOL
CategoryL1Relays and Contactors
CategoryL2Relays
CategoryL3Electromagnetic Relays
CategoryL4Miniature Electromagnetic Relays
Extra Product NameRELPOL RM85-2021-35-5024 | Relay: electromagnetic; SPST-NO; Ucoil: 24VAC; Icontacts max: 16A
atoms, moq, multiple, tierMinQty11
jsonUrlDataa8be6e93fe27f678e2919edd0df79ae5.
jsonUrlData22bb7d652b36df0799711
keywordsRELPOL, RM85-2021-35-5024
MPN, SKURM85-2021-35-5024
qtyInStock348
snippetRELPOL RM85-2021-35-5024 | Relay: electromagnetic; SPST-NO; Ucoil: 24VAC; Icontacts max: 16
tierMinQty25
tierMinQty320
tierMinQty4100
tierMinQty5500
tierPrice11.91
tierPrice21.48
tierPrice31.35
tierPrice41.17
tierPrice51.09
Type of relayelectromagnetic
Contacts configurationSPST-NO
Rated coil voltage24V AC
Contact current max, Current rating16A
AC contacts rating @R16A / 250V AC
DC contacts rating @R16A / 24V DC
Switched voltagemax. 250V DC,
Relay variantminiature
MountingPCB
Coil resistance400?
Coil voltage min19.2V AC
Coil voltage max28.8V AC
Operate time8ms
Body dimensions29x12.7x15.7mm
Release time3ms
Coil power consumption0.75VA
IP ratingIP67
Operating temperature-40...85?C
Relay seriesRM85
Contact resistance100m?
Contact materialAgNi
Terminal pitch5mm
Related itemsGD50,
OEM number651377
Body colourwhite

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMERM85-2021-35-5024134811 @ $1.91, 5 @ $1.48, 20 @ $1.35, 100 @ $1.17, 500 @ $1.09
TMERM85-Z-24VAC11
