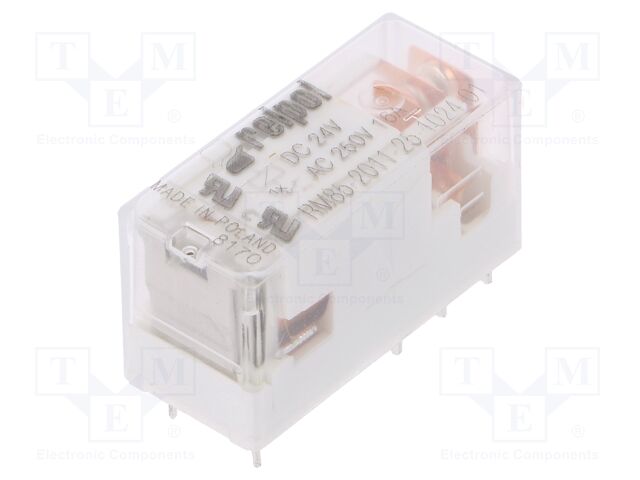

RELPOL RM85-2011-25-1024-01 | Relay: electromagnetic; SPDT; Ucoil: 24VDC; Icontacts max: 16A

RELPOL . RM85-2011-25-1024-01

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerRELPOL
CategoryL1Relays and Contactors
CategoryL2Relays
CategoryL3Electromagnetic Relays
CategoryL4Miniature Electromagnetic Relays
Extra Product NameRELPOL RM85-2011-25-1024-01 | Relay: electromagnetic; SPDT; Ucoil: 24VDC; Icontacts max: 16A
atoms, moq, multiple, tierMinQty11
jsonUrlData444d8ef50c5a599ab725b896545b0e93.5
jsonUrlData21b6ac7b90a3b882d344d
keywordsRELPOL, RM85-2011-25-1024-01, RM85201125102401, Relays and Contactors, Relays, Electromagnetic Relays, Miniature Electromagnetic Relays
MPNRM85-2011-25-1024-01
qtyInStock205
SKURM85201125102401
snippetRELPOL RM85-2011-25-1024-01 | Relay: electromagnetic; SPDT; Ucoil: 24VDC; Icontacts max: 16
tierMinQty210
tierMinQty320
tierMinQty4100
tierMinQty5500
tierPrice13.92
tierPrice23.74
tierPrice33.35
tierPrice43.16
tierPrice52.87
Type of relayelectromagnetic
Contacts configurationSPDT
Rated coil voltage24V DC
Contact current max, Current rating16A
AC contacts rating @R16A / 250V AC
DC contacts rating @R16A / 24V DC
Switched voltagemax. 250V DC,
Relay variantminiature
MountingPCB
Coil resistance1440?
Coil voltage min16.8V DC
Coil voltage max61.2V DC
Operate time8ms
Body dimensions29x12.7x15.7mm
Release time3ms
Coil power consumption480mW
IP ratingIP67
Operating temperature-40...85?C
Relay seriesRM85
Contact resistance100m?
Contact materialAgNi
Terminal pitch5mm
Related itemsGD50,
OEM number859720
Max surge current30A
Body colourtransparent

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMERM85201125102401120511 @ $3.92, 10 @ $3.74, 20 @ $3.35, 100 @ $3.16, 500 @ $2.87
