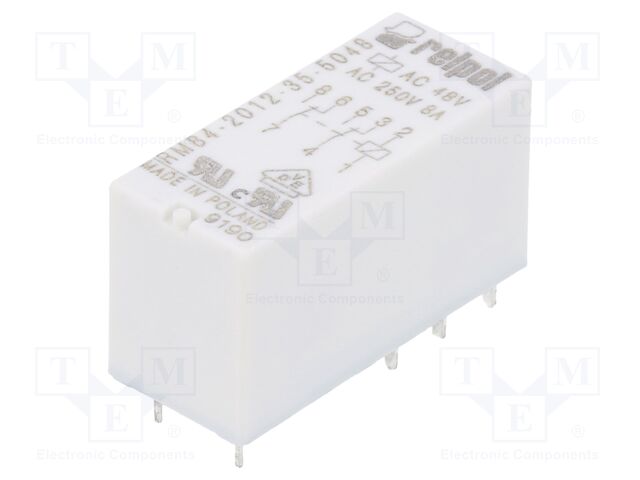

RELPOL RM84-2012-35-5048 | Relay: electromagnetic; DPDT; Ucoil: 48VAC; 8A; 8A/250VAC; 8A/24VDC

RELPOL . RM84-2012-35-5048

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerRELPOL
CategoryL1Relays and Contactors
CategoryL2Relays
CategoryL3Electromagnetic Relays
CategoryL4Miniature Electromagnetic Relays
DimensionUnitmm
Extra Product NameRELPOL RM84-2012-35-5048 | Relay: electromagnetic; DPDT; Ucoil: 48VAC; 8A; 8A/250VAC; 8A/24VDC
atoms1
height15.7
height_AttribHeight
jsonUrlData871fcd779af1ead76b17aecd3e679e2b.
jsonUrlData2b485c309f1d3e29297ea
keywordsRELPOL, RM84-2012-35-5048, Relays and Contactors, Relays, Electromagnetic Relays, Miniature Electromagnetic Relays
moq, multiple, tierMinQty11000
MPN, SKURM84-2012-35-5048
qtyInStock0
snippetRELPOL RM84-2012-35-5048 | Relay: electromagnetic; DPDT; Ucoil: 48VAC; 8A; 8A/250VAC; 8A/24VD
tierPrice14.57
Type of relayelectromagnetic
Contacts configurationDPDT
Rated coil voltage48V AC
Contact current max8A
AC contacts rating @R8A / 250V AC
DC contacts rating @R8A / 24V DC
Switched voltagemax. 250V DC,
Relay variantminiature
MountingPCB
Coil resistance1550?
Coil voltage min43.2V AC
Coil voltage max52.8V AC
Operate time7ms
Body dimensions29x12.7x15.7mm
Release time3ms
Coil power consumption750mVA
IP ratingIP67
Mechanical durability30000000 cycles
Operating temperature-40...85?C
Relay seriesRM84
Contact resistance100m?
Contact materialAgNi
Terminal pitch5mm
Related itemsGD50,
Height15.7mm
Number of pins8
Body colourwhite

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMERM84-2012-35-5048100010001000 @ $4.57
