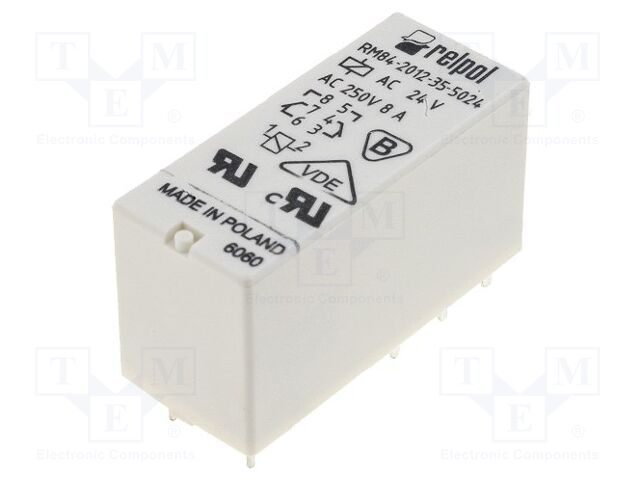

RELPOL RM84-2012-35-5024 | Relay: electromagnetic; DPDT; Ucoil: 24VAC; 8A; 8A/250VAC; 8A/24VDC

RELPOL . RM84-2012-35-5024

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerRELPOL
CategoryL1Relays and Contactors
CategoryL2Relays
CategoryL3Electromagnetic Relays
CategoryL4Miniature Electromagnetic Relays
DimensionUnitmm
Extra Product NameRELPOL RM84-2012-35-5024 | Relay: electromagnetic; DPDT; Ucoil: 24VAC; 8A; 8A/250VAC; 8A/24VDC
atoms, moq, multiple1
height15.7
height_AttribHeight
jsonUrlData4eddb69217df97bc6d8d5a20a0fa90de.
jsonUrlData21cb90e260c0fa7cc6f26
keywordsRELPOL, RM84-2012-35-5024, RM84-P-24VAC
MPNRM84-2012-35-5024
qtyInStock0
SKURM84-P-24VAC
snippetRELPOL RM84-2012-35-5024 | Relay: electromagnetic; DPDT; Ucoil: 24VAC; 8A; 8A/250VAC; 8A/24VD
Type of relayelectromagnetic
Contacts configurationDPDT
Rated coil voltage24V AC
Contact current max8A
AC contacts rating @R8A / 250V AC
DC contacts rating @R8A / 24V DC
Switched voltagemax. 250V DC,
Relay variantminiature
MountingPCB
Coil resistance400?
Coil voltage min19.2V AC
Coil voltage max28.8V AC
Operate time7ms
Body dimensions29x12.7x15.7mm
Release time3ms
Coil power consumption750mVA
IP ratingIP67
Mechanical durability30000000 cycles
Operating temperature-40...85?C
Relay seriesRM84
Contact resistance100m?
Contact materialAgNi
Terminal pitch5mm
Related itemsGD50,
Height15.7mm
OEM number604615
Number of pins8
Body colourwhite

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMERM84-P-24VAC11
RS Delivers123-2082133711 @ $6.01
TMERM84-2012-35-50241312311 @ $2.46, 5 @ $2.33, 20 @ $2.27, 100 @ $2.03, 500 @ $1.98
kempstoncontrols.co.ukRM84-2012-35-5024111 @ $0.00
RS Online123208211
