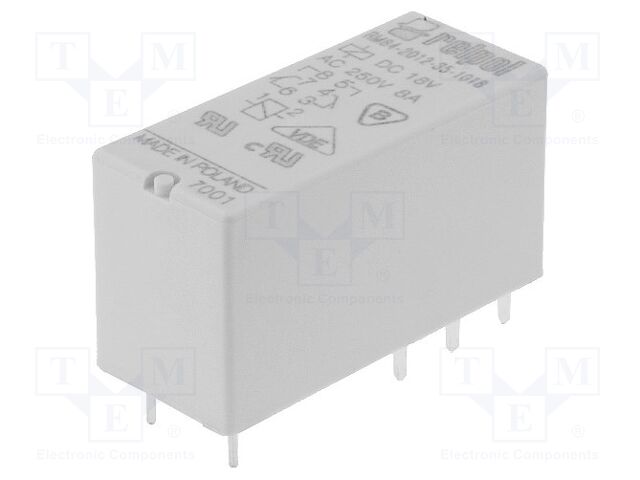

RELPOL RM84-2012-35-1018 | Relay: electromagnetic; DPDT; Ucoil: 18VDC; 8A; 8A/250VAC; 8A/24VDC

RELPOL . RM84-2012-35-1018

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerRELPOL
CategoryL1Relays and Contactors
CategoryL2Relays
CategoryL3Electromagnetic Relays
CategoryL4Miniature Electromagnetic Relays
DimensionUnitmm
Extra Product NameRELPOL RM84-2012-35-1018 | Relay: electromagnetic; DPDT; Ucoil: 18VDC; 8A; 8A/250VAC; 8A/24VDC
atoms, moq, multiple, tierMinQty11
height15.7
height_AttribHeight
jsonUrlData4444225b8556486da7b825618d873571.
jsonUrlData2375d220bcc0d0ed11f62
keywordsRELPOL, RM84-2012-35-1018, Relays and Contactors, Relays, Electromagnetic Relays, Miniature Electromagnetic Relays
MPN, SKURM84-2012-35-1018
qtyInStock967
snippetRELPOL RM84-2012-35-1018 | Relay: electromagnetic; DPDT; Ucoil: 18VDC; 8A; 8A/250VAC; 8A/24VD
tierMinQty25
tierMinQty320
tierMinQty4100
tierMinQty5500
tierPrice11.76
tierPrice21.59
tierPrice31.3
tierPrice41.13
tierPrice51.05
Type of relayelectromagnetic
Contacts configurationDPDT
Rated coil voltage18V DC
Contact current max8A
AC contacts rating @R8A / 250V AC
DC contacts rating @R8A / 24V DC
Switched voltagemax. 250V DC,
Relay variantminiature
MountingPCB
Coil resistance710?
Coil voltage min12.6V DC
Coil voltage max45.9V DC
Operate time7ms
Body dimensions29x12.7x15.7mm
Release time3ms
Coil power consumption480mW
IP ratingIP67
Mechanical durability30000000 cycles
Operating temperature-40...85?C
Relay seriesRM84
Contact resistance100m?
Contact materialAgNi
Terminal pitch5mm
Related itemsGD50,
Height15.7mm
Number of pins8
Body colourwhite

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMERM84-2012-35-1018196711 @ $1.76, 5 @ $1.59, 20 @ $1.30, 100 @ $1.13, 500 @ $1.05
TMERM84-P-18V11
