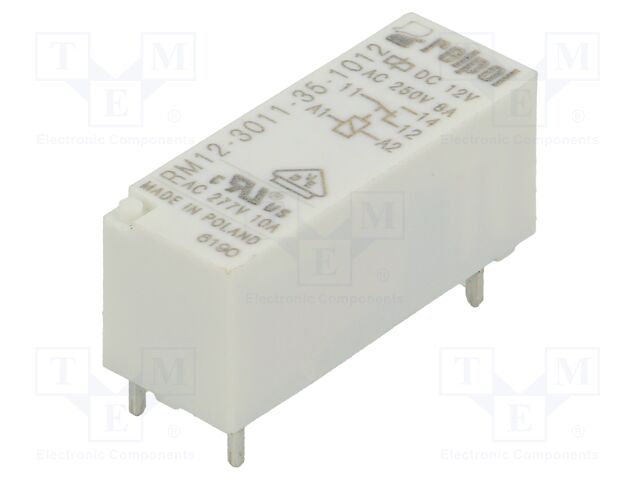

RELPOL RM12-3011-35-1012 | Relay: electromagnetic; SPDT; Ucoil: 12VDC; Icontacts max: 8A; THT

RELPOL . RM12-3011-35-1012

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerRELPOL
CategoryL1Relays and Contactors
CategoryL2Relays
CategoryL3Electromagnetic Relays
CategoryL4Miniature Electromagnetic Relays
Extra Product NameRELPOL RM12-3011-35-1012 | Relay: electromagnetic; SPDT; Ucoil: 12VDC; Icontacts max: 8A; THT
atoms, moq, multiple1
jsonUrlData63d0eeac19e5e524e5b8b5c276beb9e0.
jsonUrlData23f9cd75960731db437b4
keywordsRELPOL, RM12-3011-35-1012, Relays and Contactors, Relays, Electromagnetic Relays, Miniature Electromagnetic Relays
MPN, SKURM12-3011-35-1012
qtyInStock0
snippetRELPOL RM12-3011-35-1012 | Relay: electromagnetic; SPDT; Ucoil: 12VDC; Icontacts max: 8A; TH
Type of relayelectromagnetic
Contacts configurationSPDT
Rated coil voltage12V DC
Contact current max, Current rating8A
AC contacts rating @R8A / 250V AC
DC contacts rating @R8A / 24V DC
Switched voltagemax. 30V DC,
Relay variantminiature
MountingTHT
Coil resistance580?
Coil voltage min8.4V DC
Coil voltage max36V DC
Operate time10ms
Body dimensions10.1x12.5x28.5mm
Release time5ms
Coil power consumption250mW
IP ratingIP67
Operating temperature-40...85?C
Relay seriesRM12
Contact resistance100m?
Contact materialAgSnO
Terminal pitch3.2mm
Max surge current10A
