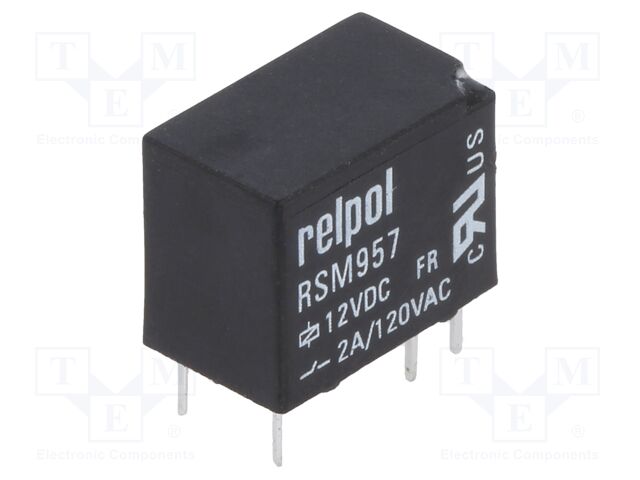

RELPOL RSM957-0111-85-S012 | Relay: electromagnetic; SPDT; Ucoil: 12VDC; 2A; 2A/120VAC; 2A/24VDC

RELPOL . RSM957-0111-85-S012

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerRELPOL
CategoryL1Relays and Contactors
CategoryL2Relays
CategoryL3Electromagnetic Relays
CategoryL4Miniature Electromagnetic Relays
Extra Product NameRELPOL RSM957-0111-85-S012 | Relay: electromagnetic; SPDT; Ucoil: 12VDC; 2A; 2A/120VAC; 2A/24VDC
atoms, moq, multiple, tierMinQty11
jsonUrlData830d7a5536cfff2be60b6cea925361b9.
jsonUrlData2bed0d76b80c534eb405d
keywordsRELPOL, RSM957-0111-85-S012, RSM957-P-12, Relays and Contactors, Relays, Electromagnetic Relays, Miniature Electromagnetic Relays
MPNRSM957-0111-85-S012
qtyInStock0
SKURSM957-P-12
snippetRELPOL RSM957-0111-85-S012 | Relay: electromagnetic; SPDT; Ucoil: 12VDC; 2A; 2A/120VAC; 2A/24VD
tierMinQty25
tierMinQty320
tierMinQty4100
tierMinQty5500
tierPrice12.63
tierPrice22.33
tierPrice32.01
tierPrice41.89
tierPrice51.66
Type of relayelectromagnetic
Contacts configurationSPDT
Rated coil voltage12V DC
Contact current max2A
AC contacts rating @R2A / 120V AC
DC contacts rating @R2A / 24V DC
Switched voltagemax. 24V DC,
Relay variantsubminiature
MountingPCB
Coil resistance960?
Coil voltage min9.6V DC
Coil voltage max15.6V DC
Operate time, Release time5ms
Body dimensions12.6x10x7.8mm
Coil power consumption150mW
IP ratingIP64
Operating temperature-30...70?C
Relay seriesRSM957
Contact resistance100m?
Contact materialAg/Au 0,2?m
Terminal pitch2.54mm
OEM number2611739

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMERSM957-P-12111 @ $2.63, 5 @ $2.33, 20 @ $2.01, 100 @ $1.89, 500 @ $1.66
