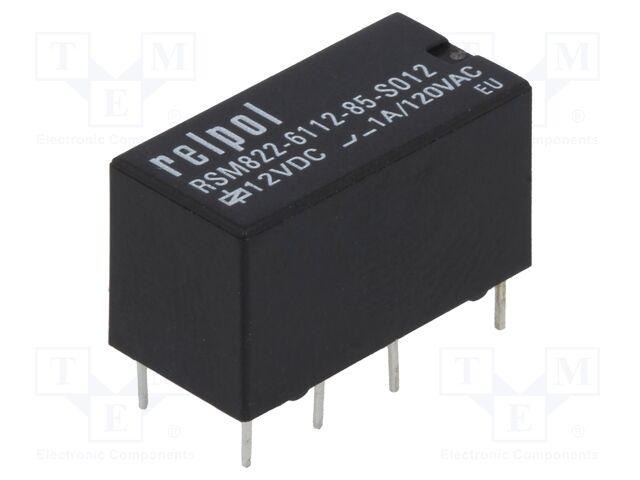

RELPOL RSM822-6112-85-S012 | Relay: electromagnetic; DPDT; Ucoil: 12VDC; 2A; 1A/120VAC; 2A/24VDC

RELPOL . RSM822-6112-85-S012

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerRELPOL
CategoryL1Relays and Contactors
CategoryL2Relays
CategoryL3Electromagnetic Relays
CategoryL4Miniature Electromagnetic Relays
Extra Product NameRELPOL RSM822-6112-85-S012 | Relay: electromagnetic; DPDT; Ucoil: 12VDC; 2A; 1A/120VAC; 2A/24VDC
atoms, moq, multiple, tierMinQty11
jsonUrlData01da494175f106fb27dd23c81a12b4ef.
jsonUrlData2b1a02c4833e544126eab
keywordsRELPOL, RSM822-6112-85-S012, RSM822-P-12
MPNRSM822-6112-85-S012
qtyInStock1360
SKURSM822-P-12
snippetRELPOL RSM822-6112-85-S012 | Relay: electromagnetic; DPDT; Ucoil: 12VDC; 2A; 1A/120VAC; 2A/24VD
tierMinQty25
tierMinQty320
tierMinQty4100
tierMinQty5500
tierPrice13.7
tierPrice23.38
tierPrice32.66
tierPrice42.42
tierPrice52.17
Type of relayelectromagnetic
Contacts configurationDPDT
Rated coil voltage12V DC
Contact current max2A
AC contacts rating @R1A / 120V AC
DC contacts rating @R2A / 24V DC
Switched voltagemax. 24V DC,
Relay variantminiature
MountingPCB
Coil resistance720?
Coil voltage min9V DC
Coil voltage max18V DC
Operate time, Release time4ms
Body dimensions21x10.1x12.1mm
Coil power consumption200mW
IP ratingIP64
Mechanical durability10000000 cycles
Operating temperature-30...80?C
Relay seriesRSM822
Contact resistance100m?
Electrical life100000 cycles
Contact materialAgPd/Au 0,2?m
Terminal pitch5mm
OEM number2611734

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMERSM822-P-121136011 @ $3.70, 5 @ $3.38, 20 @ $2.66, 100 @ $2.42, 500 @ $2.17
