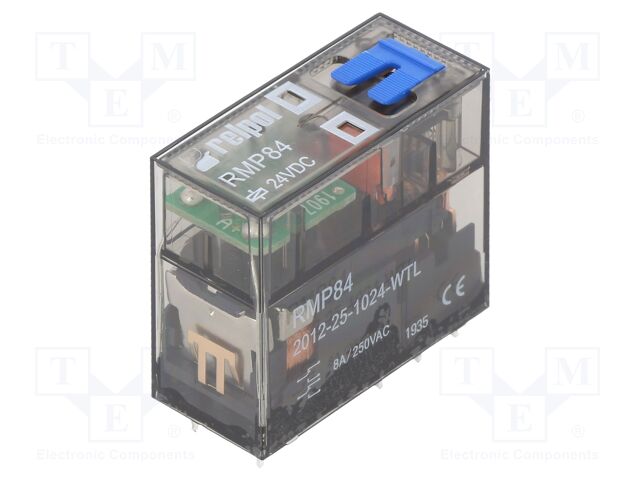

RELPOL RMP84-2012-25-1024-WTL | Relay: electromagnetic; DPDT; Ucoil: 24VDC; 8A; 8A/250VAC; 8A/24VDC

RELPOL . RMP84-2012-25-1024-WTL

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerRELPOL
CategoryL1Relays and Contactors
CategoryL2Relays
CategoryL3Electromagnetic Relays
CategoryL4Miniature Electromagnetic Relays
DimensionUnitmm
Extra Product NameRELPOL RMP84-2012-25-1024-WTL | Relay: electromagnetic; DPDT; Ucoil: 24VDC; 8A; 8A/250VAC; 8A/24VDC
atoms, moq, multiple1
height25.5
height_AttribHeight
jsonUrlData90c1bfe2f3d46fa5f005b19ff047c478.
jsonUrlData20b6fff3ea2a9d3299315
keywordsRELPOL, RMP84-2012-25-1024-WTL, RMP842012251024WTL
MPNRMP84-2012-25-1024-WTL
qtyInStock0
SKURMP842012251024WTL
snippetRELPOL RMP84-2012-25-1024-WTL | Relay: electromagnetic; DPDT; Ucoil: 24VDC; 8A; 8A/250VAC; 8A/24VD
Type of relayelectromagnetic
Contacts configurationDPDT
Rated coil voltage24V DC
Contact current max8A
AC contacts rating @R8A / 250V AC
DC contacts rating @R8A / 24V DC
Switched voltagemax. 250V DC,
Relay variantminiature
MountingPCB
Coil resistance1.44k?
Coil voltage min16.8V DC
Coil voltage max36V DC
Operate time15ms
Body dimensions29x13x25.5mm
Release time8ms
Coil power consumption480mW
IP ratingIP40
Mechanical durability5000000 cycles
Operating temperature-40...70?C
Relay seriesRMP84
Contact resistance100m?
Contact materialAgNi
Terminal pitch5.04mm
Related itemsGD50,
Height25.5mm
Number of pins8
Body colourtransparent tinted
Insulation voltage5kV
