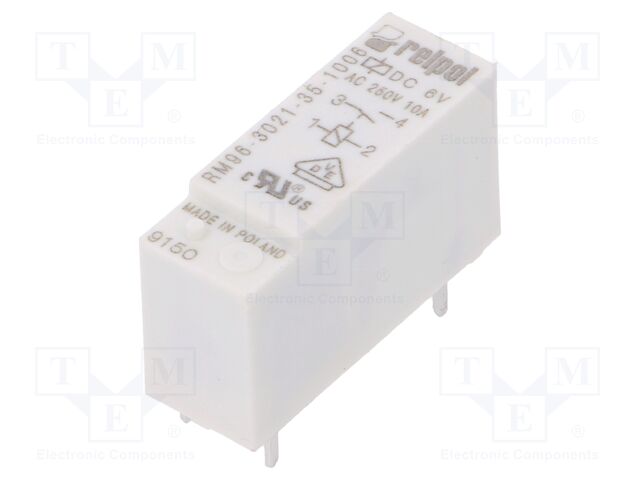

RELPOL RM96-3021-35-1006 | Relay: electromagnetic; SPST-NO; Ucoil: 6VDC; 8A; 8A/250VAC; PCB

RELPOL . RM96-3021-35-1006

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerRELPOL
CategoryL1Relays and Contactors
CategoryL2Relays
CategoryL3Electromagnetic Relays
CategoryL4Miniature Electromagnetic Relays
DimensionUnitmm
Extra Product NameRELPOL RM96-3021-35-1006 | Relay: electromagnetic; SPST-NO; Ucoil: 6VDC; 8A; 8A/250VAC; PCB
atoms, moq, multiple, tierMinQty11
height16.2
height_AttribHeight
jsonUrlData2294400ac2dd7da38c7d5af5c0a06778.
jsonUrlData2f02e7803f7c2addf471f
keywordsRELPOL, RM96-3021-35-1006
MPN, SKURM96-3021-35-1006
qtyInStock24
snippetRELPOL RM96-3021-35-1006 | Relay: electromagnetic; SPST-NO; Ucoil: 6VDC; 8A; 8A/250VAC; PC
tierMinQty25
tierMinQty350
tierMinQty4100
tierMinQty5500
tierPrice11.71
tierPrice21.54
tierPrice31.28
tierPrice41.21
tierPrice51.11
Type of relayelectromagnetic
Contacts configurationSPST-NO
Rated coil voltage6V DC
Contact current max8A
AC contacts rating @R8A / 250V AC
DC contacts rating @R8A / 24V DC
Switched voltagemax. 120V DC,
Relay variantminiature
MountingPCB
Coil resistance160?
Coil voltage min4.2V DC
Coil voltage max14.5V DC
Operate time10ms
Body dimensions28x10x16.2mm
Release time5ms
Coil power consumption300mW
IP ratingIP67
Mechanical durability20000000 cycles
Operating temperature-40...80?C
Relay seriesRM96
Contact resistance100m?
Contact materialAgSnO
Terminal pitch5mm
Height16.2mm
OEM number852855
Number of pins4

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMERM96-3021-35-100612411 @ $1.71, 5 @ $1.54, 50 @ $1.28, 100 @ $1.21, 500 @ $1.11
