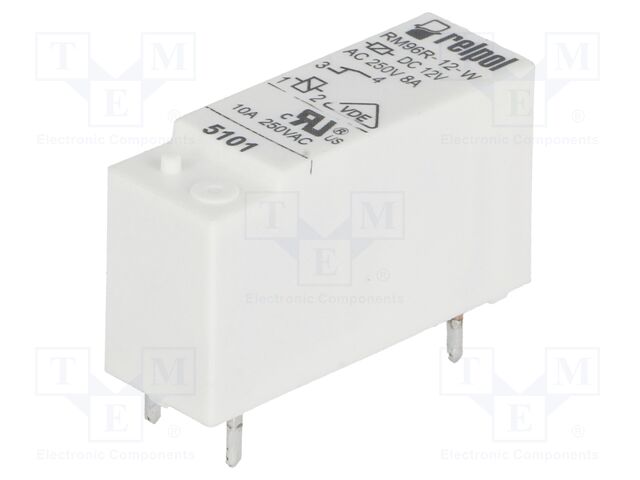

RELPOL RM96-1031-35-1012 | Relay: electromagnetic; SPST-NC; Ucoil: 12VDC; 8A; 8A/250VAC; PCB

RELPOL . RM96-1031-35-1012

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerRELPOL
CategoryL1Relays and Contactors
CategoryL2Relays
CategoryL3Electromagnetic Relays
CategoryL4Miniature Electromagnetic Relays
DimensionUnitmm
Extra Product NameRELPOL RM96-1031-35-1012 | Relay: electromagnetic; SPST-NC; Ucoil: 12VDC; 8A; 8A/250VAC; PCB
atoms, moq, multiple1
height16.2
height_AttribHeight
jsonUrlDatadf6951101e312691e024a2bf76328174.
jsonUrlData2640845c44480ab54f738
keywordsRELPOL, RM96-1031-35-1012, Relays and Contactors, Relays, Electromagnetic Relays, Miniature Electromagnetic Relays
MPN, SKURM96-1031-35-1012
qtyInStock0
snippetRELPOL RM96-1031-35-1012 | Relay: electromagnetic; SPST-NC; Ucoil: 12VDC; 8A; 8A/250VAC; PC
Type of relayelectromagnetic
Contacts configurationSPST-NC
Rated coil voltage12V DC
Contact current max8A
AC contacts rating @R8A / 250V AC
DC contacts rating @R8A / 24V DC
Switched voltagemax. 120V DC,
Relay variantminiature
MountingPCB
Coil resistance660?
Coil voltage min8.4V DC
Coil voltage max29.5V DC
Operate time10ms
Body dimensions28x10x16.2mm
Release time5ms
Coil power consumption300mW
IP ratingIP67
Mechanical durability20000000 cycles
Operating temperature-40...80?C
Relay seriesRM96
Contact resistance100m?
Contact materialAgCdO
Terminal pitch5mm
Height16.2mm
Number of pins4

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMERM96-1031-35-101211
TMERM96-R-12V11
