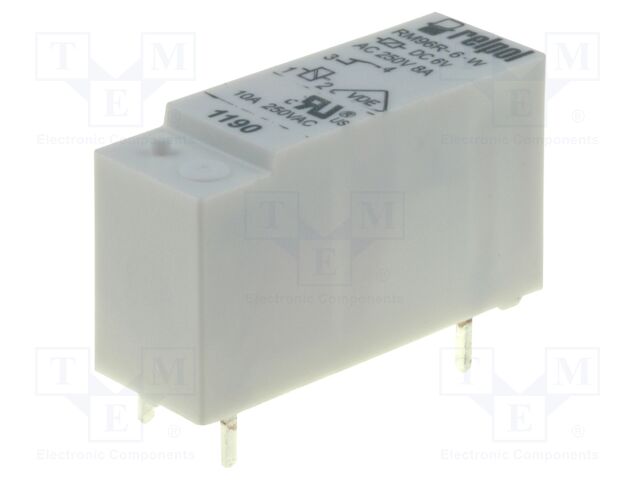

RELPOL RM96-1031-35-1006 | Relay: electromagnetic; SPST-NC; Ucoil: 6VDC; 8A; 8A/250VAC; PCB

RELPOL . RM96-1031-35-1006

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerRELPOL
CategoryL1Relays and Contactors
CategoryL2Relays
CategoryL3Electromagnetic Relays
CategoryL4Miniature Electromagnetic Relays
DimensionUnitmm
Extra Product NameRELPOL RM96-1031-35-1006 | Relay: electromagnetic; SPST-NC; Ucoil: 6VDC; 8A; 8A/250VAC; PCB
atoms, moq, multiple1
height16.2
height_AttribHeight
jsonUrlDatac9b636d190b4c7677ce178dd97313eaf.
jsonUrlData21c5afa2d4bb4c0b42cfa
keywordsRELPOL, RM96-1031-35-1006, RM96-R-6V, Relays and Contactors, Relays, Electromagnetic Relays, Miniature Electromagnetic Relays
MPNRM96-1031-35-1006
qtyInStock0
SKURM96-R-6V
snippetRELPOL RM96-1031-35-1006 | Relay: electromagnetic; SPST-NC; Ucoil: 6VDC; 8A; 8A/250VAC; PC
Type of relayelectromagnetic
Contacts configurationSPST-NC
Rated coil voltage6V DC
Contact current max8A
AC contacts rating @R8A / 250V AC
DC contacts rating @R8A / 24V DC
Switched voltagemax. 120V DC,
Relay variantminiature
MountingPCB
Coil resistance160?
Coil voltage min4.2V DC
Coil voltage max14.5V DC
Operate time10ms
Body dimensions28x10x16.2mm
Release time5ms
Coil power consumption300mW
IP ratingIP67
Mechanical durability20000000 cycles
Operating temperature-40...80?C
Relay seriesRM96
Contact resistance100m?
Contact materialAgCdO
Terminal pitch5mm
Height16.2mm
