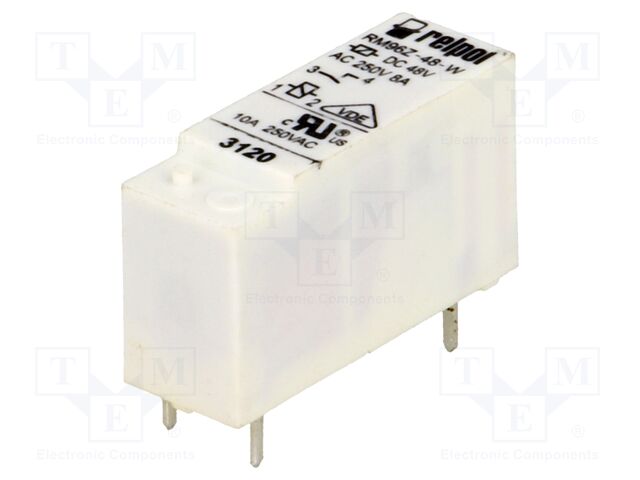

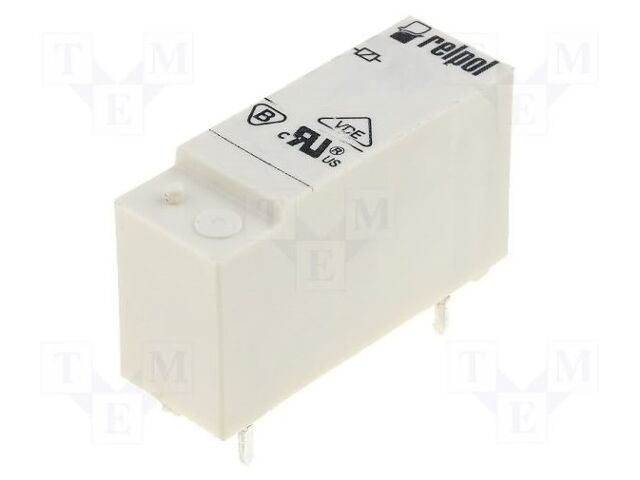

RELPOL RM96-1021-35-1048 | Relay: electromagnetic; SPST-NO; Ucoil: 48VDC; 8A; 8A/250VAC; PCB

RELPOL . RM96-1021-35-1048

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerRELPOL
CategoryL1Relays and Contactors
CategoryL2Relays
CategoryL3Electromagnetic Relays
CategoryL4Miniature Electromagnetic Relays
DimensionUnitmm
Extra Product NameRELPOL RM96-1021-35-1048 | Relay: electromagnetic; SPST-NO; Ucoil: 48VDC; 8A; 8A/250VAC; PCB
atoms, moq, multiple1
height16.2
height_AttribHeight
jsonUrlData64d45ff346df52051c373cb77777deff.
jsonUrlData23398da20975b17e93ad0
keywordsRELPOL, RM96-1021-35-1048
MPN, SKURM96-1021-35-1048
qtyInStock0
snippetRELPOL RM96-1021-35-1048 | Relay: electromagnetic; SPST-NO; Ucoil: 48VDC; 8A; 8A/250VAC; PC
Type of relayelectromagnetic
Contacts configurationSPST-NO
Rated coil voltage48V DC
Contact current max8A
AC contacts rating @R8A / 250V AC
DC contacts rating @R8A / 24V DC
Switched voltagemax. 120V DC,
Relay variantminiature
MountingPCB
Coil resistance8k?
Coil voltage min33.6V DC
Coil voltage max102V DC
Operate time10ms
Body dimensions28x10x16.2mm
Release time5ms
Coil power consumption300mW
IP ratingIP67
Mechanical durability20000000 cycles
Operating temperature-40...80?C
Relay seriesRM96
Contact resistance100m?
Contact materialAgCdO
Terminal pitch5mm
Height16.2mm
OEM number301260
Number of pins4
