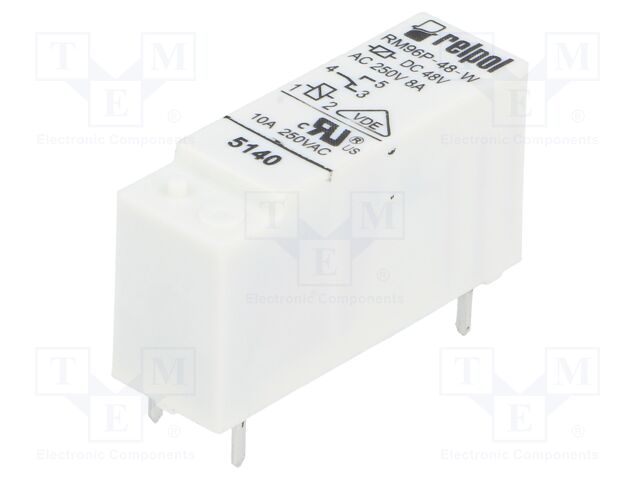

RELPOL RM96-1011-35-1048 | Relay: electromagnetic; SPDT; Ucoil: 48VDC; 8A; 8A/250VAC; 8A/24VDC

RELPOL . RM96-1011-35-1048

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerRELPOL
CategoryL1Relays and Contactors
CategoryL2Relays
CategoryL3Electromagnetic Relays
CategoryL4Miniature Electromagnetic Relays
DimensionUnitmm
Extra Product NameRELPOL RM96-1011-35-1048 | Relay: electromagnetic; SPDT; Ucoil: 48VDC; 8A; 8A/250VAC; 8A/24VDC
atoms, moq, multiple1
height16.2
height_AttribHeight
jsonUrlDatace7af330d79d79c68481006150b9df91.
jsonUrlData242130aa3b0117eeb83cb
keywordsRELPOL, RM96-1011-35-1048, Relays and Contactors, Relays, Electromagnetic Relays, Miniature Electromagnetic Relays
MPN, SKURM96-1011-35-1048
qtyInStock0
snippetRELPOL RM96-1011-35-1048 | Relay: electromagnetic; SPDT; Ucoil: 48VDC; 8A; 8A/250VAC; 8A/24VD
Type of relayelectromagnetic
Contacts configurationSPDT
Rated coil voltage48V DC
Contact current max8A
AC contacts rating @R8A / 250V AC
DC contacts rating @R8A / 24V DC
Switched voltagemax. 120V DC,
Relay variantminiature
MountingPCB
Coil resistance8k?
Coil voltage min33.6V DC
Coil voltage max102V DC
Operate time10ms
Body dimensions30x10x16.2mm
Release time5ms
Coil power consumption300mW
IP ratingIP67
Mechanical durability20000000 cycles
Operating temperature-40...80?C
Relay seriesRM96-1P
Contact resistance100m?
Contact materialAgCdO
Terminal pitch3.2mm
Height16.2mm
Number of pins5

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMERM96-1011-35-104811
TMERM96-P-48V11
