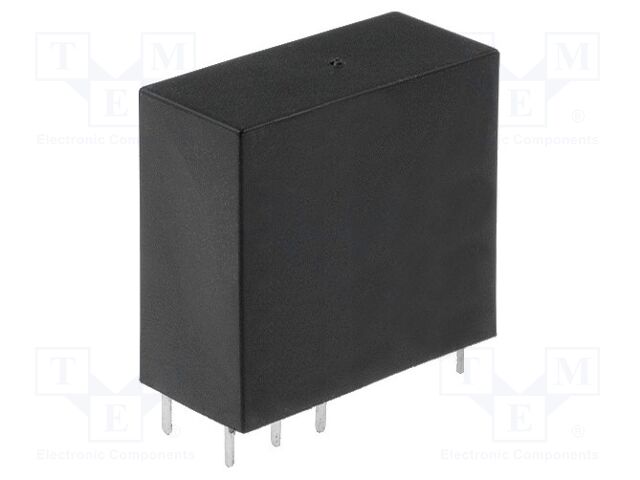

RELPOL RM94-1012-25-S048 | Relay: electromagnetic; DPDT; Ucoil: 48VDC; 8A; 8A/250VAC; 8A/24VDC

RELPOL . RM94-1012-25-S048

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerRELPOL
CategoryL1Relays and Contactors
CategoryL2Relays
CategoryL3Electromagnetic Relays
CategoryL4Miniature Electromagnetic Relays
Extra Product NameRELPOL RM94-1012-25-S048 | Relay: electromagnetic; DPDT; Ucoil: 48VDC; 8A; 8A/250VAC; 8A/24VDC
atoms, moq, multiple1
jsonUrlDatac21c211669997b019f431fba8a714a8f.
jsonUrlData29dd350959f37ef5bd988
keywordsRELPOL, RM94-1012-25-S048, RM94-P-48V-S
MPNRM94-1012-25-S048
qtyInStock0
SKURM94-P-48V-S
snippetRELPOL RM94-1012-25-S048 | Relay: electromagnetic; DPDT; Ucoil: 48VDC; 8A; 8A/250VAC; 8A/24VD
Type of relayelectromagnetic
Contacts configurationDPDT
Rated coil voltage48V DC
Contact current max8A
AC contacts rating @R8A / 250V AC
DC contacts rating @R8A / 24V DC
Switched voltagemax. 250V DC,
Relay variantminiature,
MountingPCB
Coil resistance4.4k?
Coil voltage min35V DC
Coil voltage max82V DC
Operate time7ms
Body dimensions28x12.5x26mm
Release time2ms
Coil power consumption800mW
IP ratingIP40
Operating temperature-40...70?C
Relay seriesRM94
Contact resistance100m?
Terminal pitch5mm

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMERM94-P-48V-S11
