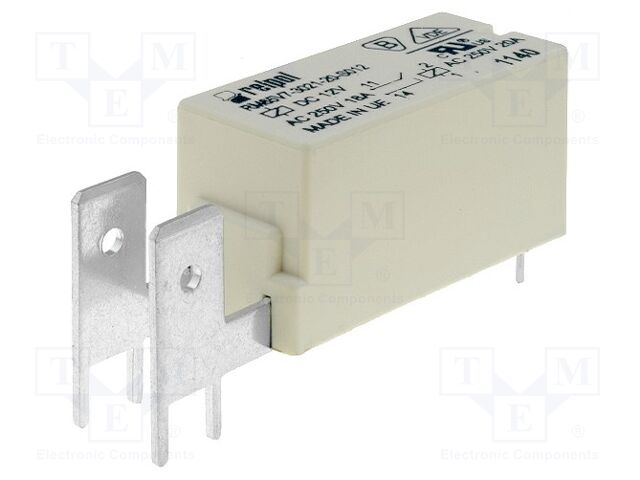

RELPOL RM85V7-3021-20-S012 | Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 20A; 20A/250VAC

RELPOL . RM85V7-3021-20-S012

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerRELPOL
CategoryL1Relays and Contactors
CategoryL2Relays
CategoryL3Electromagnetic Relays
CategoryL4Miniature Electromagnetic Relays
Extra Product NameRELPOL RM85V7-3021-20-S012 | Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 20A; 20A/250VAC
atoms, moq, multiple, tierMinQty11
jsonUrlDatafbd39e563095fb9a3dee4605cff73dfe.
jsonUrlData2af88809d3c1e127b11d3
keywordsRELPOL, RM85V7-3021-20-S012, RM85V7-Z-12VDC, Relays and Contactors, Relays, Electromagnetic Relays, Miniature Electromagnetic Relays
MPNRM85V7-3021-20-S012
qtyInStock39
SKURM85V7-Z-12VDC
snippetRELPOL RM85V7-3021-20-S012 | Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 20A; 20A/250VA
tierMinQty25
tierMinQty325
tierMinQty4100
tierMinQty5500
tierPrice19.66
tierPrice28.78
tierPrice36.81
tierPrice45.93
tierPrice55.49
Type of relayelectromagnetic
Contacts configurationSPST-NO
Rated coil voltage12V DC
Contact current max20A
AC contacts rating @R20A / 250V AC
DC contacts rating @R20A / 24V DC
Switched voltagemax. 250V DC,
Relay variantminiature,
MountingPCB
Coil resistance580?
Coil voltage min9V DC
Coil voltage max36V DC
Operate time8ms
Body dimensions29x12.7x15.7mm
Release time3ms
Coil power consumption250mW
IP ratingIP40
Operating temperature-40...105?C
Relay seriesRM85V7
Contact resistance100m?
Terminal pitch7.5mm
Leadsconnectors 6,3x0,8mm,
OEM number855378

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMERM85V7-Z-12VDC13911 @ $9.66, 5 @ $8.78, 25 @ $6.81, 100 @ $5.93, 500 @ $5.49
TMERM85V7-Z-12V-S11
