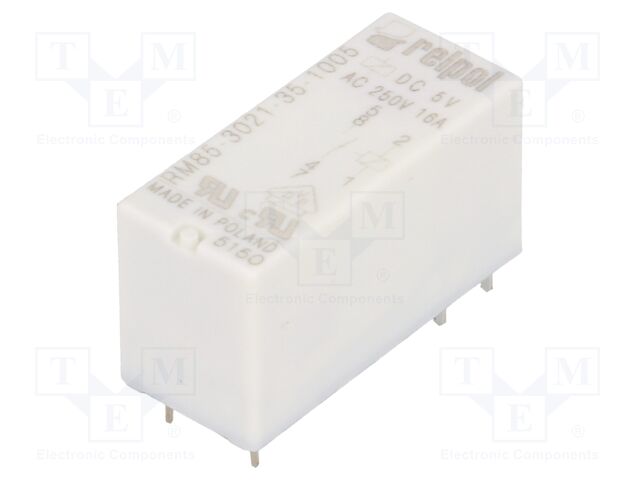

RELPOL RM85-3021-35-1005 | Relay: electromagnetic; SPST-NO; Ucoil: 5VDC; Icontacts max: 16A

RELPOL . RM85-3021-35-1005

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerRELPOL
CategoryL1Relays and Contactors
CategoryL2Relays
CategoryL3Electromagnetic Relays
CategoryL4Miniature Electromagnetic Relays
Extra Product NameRELPOL RM85-3021-35-1005 | Relay: electromagnetic; SPST-NO; Ucoil: 5VDC; Icontacts max: 16A
atoms, moq, multiple, tierMinQty11
jsonUrlData5cc619d83e0f807c908af116e5222c33.
jsonUrlData2fe55592b4679fc12e55c
keywordsRELPOL, RM85-3021-35-1005
MPN, SKURM85-3021-35-1005
qtyInStock354
snippetRELPOL RM85-3021-35-1005 | Relay: electromagnetic; SPST-NO; Ucoil: 5VDC; Icontacts max: 16
tierMinQty25
tierMinQty320
tierMinQty4100
tierMinQty5500
tierPrice11.91
tierPrice21.74
tierPrice31.35
tierPrice41.17
tierPrice51.09
Type of relayelectromagnetic
Contacts configurationSPST-NO
Rated coil voltage5V DC
Contact current max, Current rating16A
AC contacts rating @R16A / 250V AC
DC contacts rating @R16A / 24V DC
Switched voltagemax. 250V DC,
Relay variantminiature
MountingPCB
Coil resistance60?
Coil voltage min3.5V DC
Coil voltage max12.7V DC
Operate time8ms
Body dimensions29x12.7x15.7mm
Release time3ms
Coil power consumption480mW
IP ratingIP67
Operating temperature-40...85?C
Relay seriesRM85
Contact resistance100m?
Contact materialAgSnO
Terminal pitch5mm
Related itemsGD50,
OEM number651073
Max surge current30A
Body colourwhite

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMERM85-3021-35-1005135411 @ $1.91, 5 @ $1.74, 20 @ $1.35, 100 @ $1.17, 500 @ $1.09
