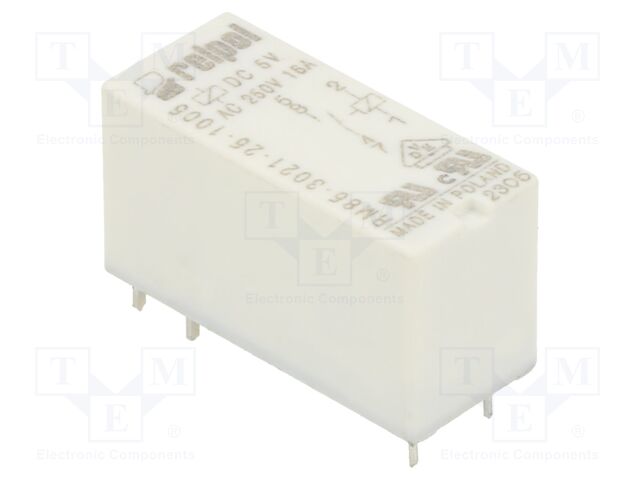

RELPOL RM85-3021-25-1005 | Relay: electromagnetic; SPST-NO; Ucoil: 5VDC; Icontacts max: 16A

RELPOL . RM85-3021-25-1005

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerRELPOL
CategoryL1Relays and Contactors
CategoryL2Relays
CategoryL3Electromagnetic Relays
CategoryL4Miniature Electromagnetic Relays
Extra Product NameRELPOL RM85-3021-25-1005 | Relay: electromagnetic; SPST-NO; Ucoil: 5VDC; Icontacts max: 16A
atoms, moq, multiple, tierMinQty11
jsonUrlDatac54fe06e10d4f73f4ba2c543889c3717.
jsonUrlData27ecc1578abcaaaa59903
keywordsRELPOL, RM85-3021-25-1005, Relays and Contactors, Relays, Electromagnetic Relays, Miniature Electromagnetic Relays
MPN, SKURM85-3021-25-1005
qtyInStock836
snippetRELPOL RM85-3021-25-1005 | Relay: electromagnetic; SPST-NO; Ucoil: 5VDC; Icontacts max: 16
tierMinQty210
tierMinQty350
tierMinQty4100
tierMinQty5500
tierPrice11.82
tierPrice21.69
tierPrice31.55
tierPrice41.37
tierPrice51.18
Type of relayelectromagnetic
Contacts configurationSPST-NO
Rated coil voltage5V DC
Contact current max, Current rating16A
AC contacts rating @R16A / 250V AC
DC contacts rating @R16A / 24V DC
Switched voltagemax. 250V DC,
Relay variantminiature
MountingPCB
Coil resistance60?
Operate time8ms
Body dimensions29x12.7x15.7mm
Release time3ms
Coil power consumption480W
IP ratingIP40
Operating temperature-40...85?C
Relay seriesRM85
Contact resistance100m?
Contact materialAgSnO
Terminal pitch5mm
Related itemsGD50,
Max surge current30A
Body colourwhite

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMERM85-3021-25-1005183611 @ $1.82, 10 @ $1.69, 50 @ $1.55, 100 @ $1.37, 500 @ $1.18
