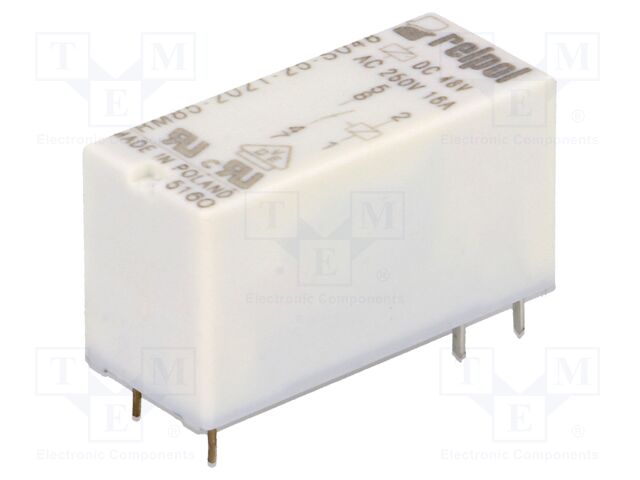

RELPOL RM85-2021-25-S048 | Relay: electromagnetic; SPST-NO; Ucoil: 48VDC; Icontacts max: 16A

RELPOL . RM85-2021-25-S048

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerRELPOL
CategoryL1Relays and Contactors
CategoryL2Relays
CategoryL3Electromagnetic Relays
CategoryL4Miniature Electromagnetic Relays
Extra Product NameRELPOL RM85-2021-25-S048 | Relay: electromagnetic; SPST-NO; Ucoil: 48VDC; Icontacts max: 16A
atoms, moq, multiple, tierMinQty11
jsonUrlData8ac6261a77637fb5f757bcc1ffdc6de8.
jsonUrlData27c505cf449943a369176
keywordsRELPOL, RM85-2021-25-S048, Relays and Contactors, Relays, Electromagnetic Relays, Miniature Electromagnetic Relays
MPN, SKURM85-2021-25-S048
qtyInStock0
snippetRELPOL RM85-2021-25-S048 | Relay: electromagnetic; SPST-NO; Ucoil: 48VDC; Icontacts max: 16
tierMinQty25
tierMinQty320
tierMinQty4100
tierMinQty5500
tierPrice11.83
tierPrice21.66
tierPrice31.33
tierPrice41.25
tierPrice51.16
Type of relayelectromagnetic
Contacts configurationSPST-NO
Rated coil voltage48V DC
Contact current max, Current rating16A
AC contacts rating @R16A / 250V AC
DC contacts rating @R16A / 24V DC
Switched voltagemax. 300V DC,
Relay variantminiature,
MountingPCB
Coil resistance9.34k?
Coil voltage min36V DC
Coil voltage max144V DC
Operate time7ms
Body dimensions29x12.7x15.7mm
Release time3ms
Coil power consumption250mW
IP ratingIP67
Operating temperature-40...85?C
Relay seriesRM85
Contact resistance100m?
Contact materialAgNi
Terminal pitch5mm
Related itemsGD50,
OEM number651211

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMERM85-2021-25-S048111 @ $1.83, 5 @ $1.66, 20 @ $1.33, 100 @ $1.25, 500 @ $1.16
