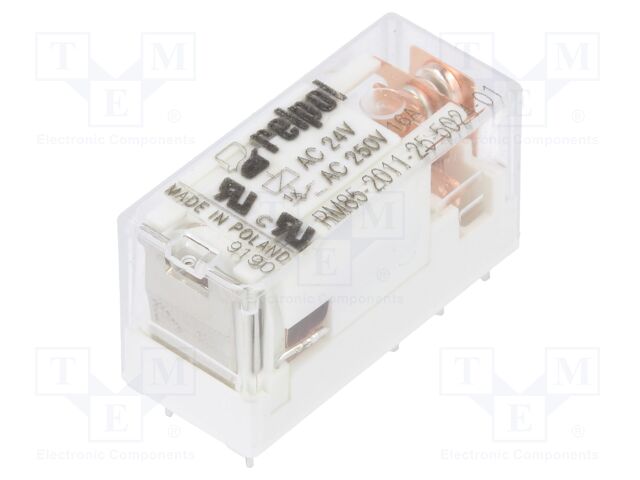

RELPOL RM85-2011-25-5024-01 | Relay: electromagnetic; SPDT; Ucoil: 24VAC; Icontacts max: 16A

RELPOL . RM85-2011-25-5024-01

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerRELPOL
CategoryL1Relays and Contactors
CategoryL2Relays
CategoryL3Electromagnetic Relays
CategoryL4Miniature Electromagnetic Relays
Extra Product NameRELPOL RM85-2011-25-5024-01 | Relay: electromagnetic; SPDT; Ucoil: 24VAC; Icontacts max: 16A
atoms, moq, multiple, tierMinQty11
jsonUrlDataf2e560371934f7a6ab750975e40a050d.
jsonUrlData2bb036266c5d2da6fec48
keywordsRELPOL, RM85-2011-25-5024-01, RM85201125502401, Relays and Contactors, Relays, Electromagnetic Relays, Miniature Electromagnetic Relays
MPNRM85-2011-25-5024-01
qtyInStock90
SKURM85201125502401
snippetRELPOL RM85-2011-25-5024-01 | Relay: electromagnetic; SPDT; Ucoil: 24VAC; Icontacts max: 16
tierMinQty210
tierMinQty320
tierMinQty4100
tierMinQty5500
tierPrice14.65
tierPrice24.28
tierPrice33.77
tierPrice43.62
tierPrice53.42
Type of relayelectromagnetic
Contacts configurationSPDT
Rated coil voltage24V AC
Contact current max, Current rating16A
AC contacts rating @R16A / 250V AC
DC contacts rating @R16A / 24V DC
Switched voltagemax. 250V DC,
Relay variantminiature
MountingPCB
Coil resistance400?
Coil voltage min19.2V AC
Coil voltage max28.8V AC
Operate time8ms
Body dimensions29x12.7x15.7mm
Release time3ms
Coil power consumption750mVA
IP ratingIP67
Operating temperature-40...85?C
Relay seriesRM85
Contact resistance100m?
Contact materialAgNi
Terminal pitch5mm
Related itemsGD50,
OEM number859814
Max surge current30A
Body colourtransparent

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMERM8520112550240119011 @ $4.65, 10 @ $4.28, 20 @ $3.77, 100 @ $3.62, 500 @ $3.42
